key specifications
engine power
18.2kW
wheelbase
1312mm
fuel type
Diesel
max lift
height
3060mm
machine
weight
1660kg
max load
capacity
1200kg
built for performance

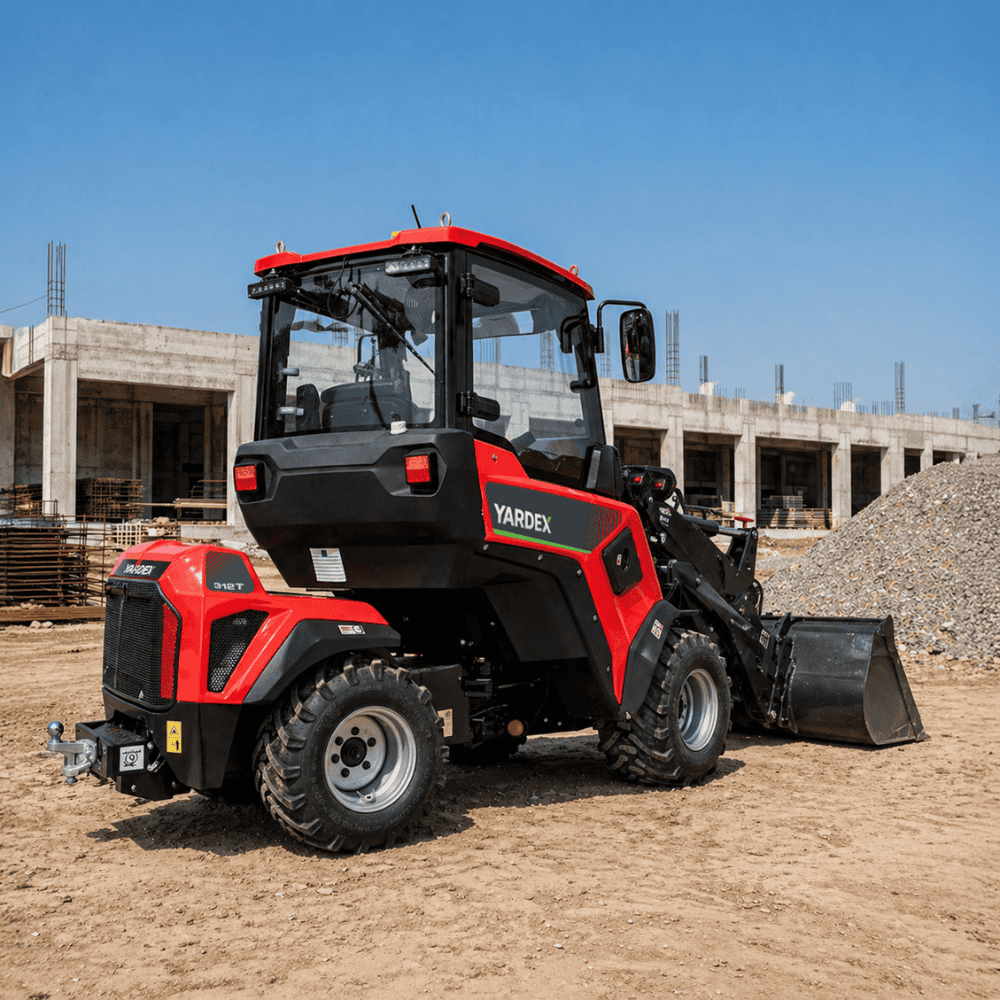

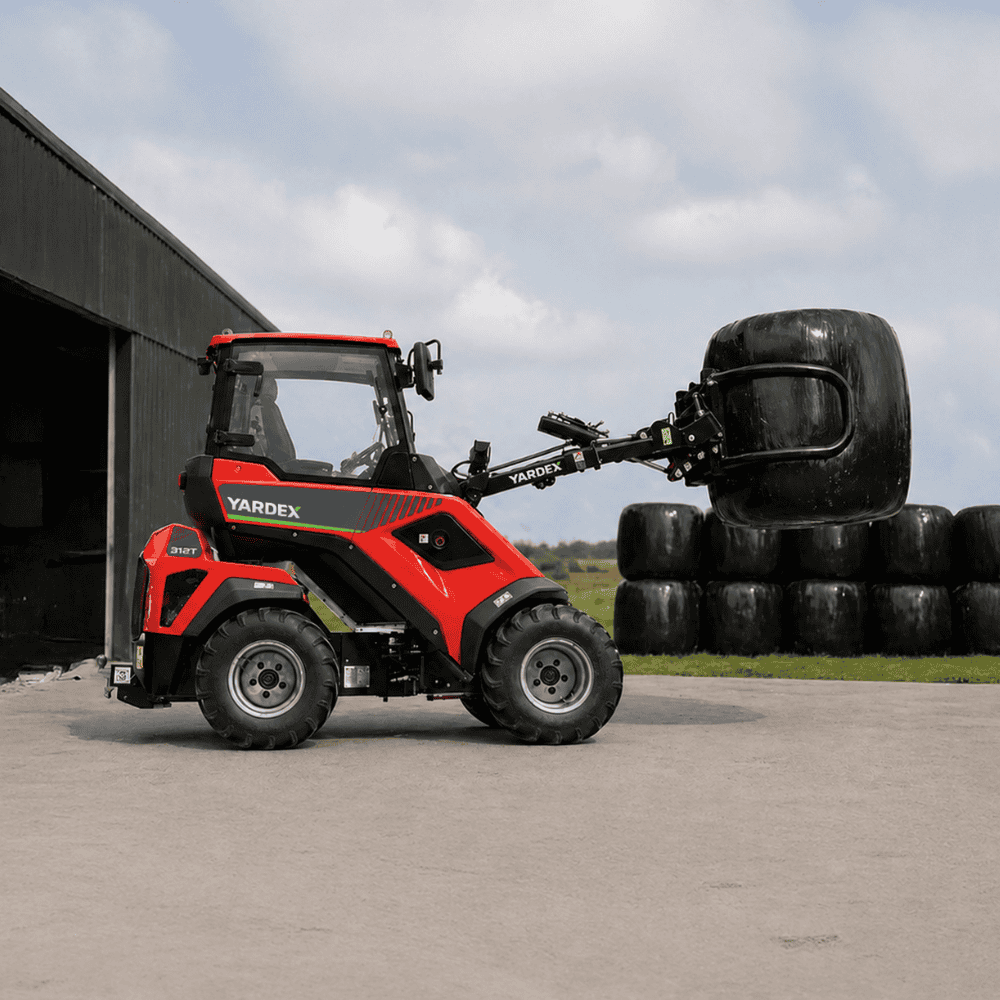

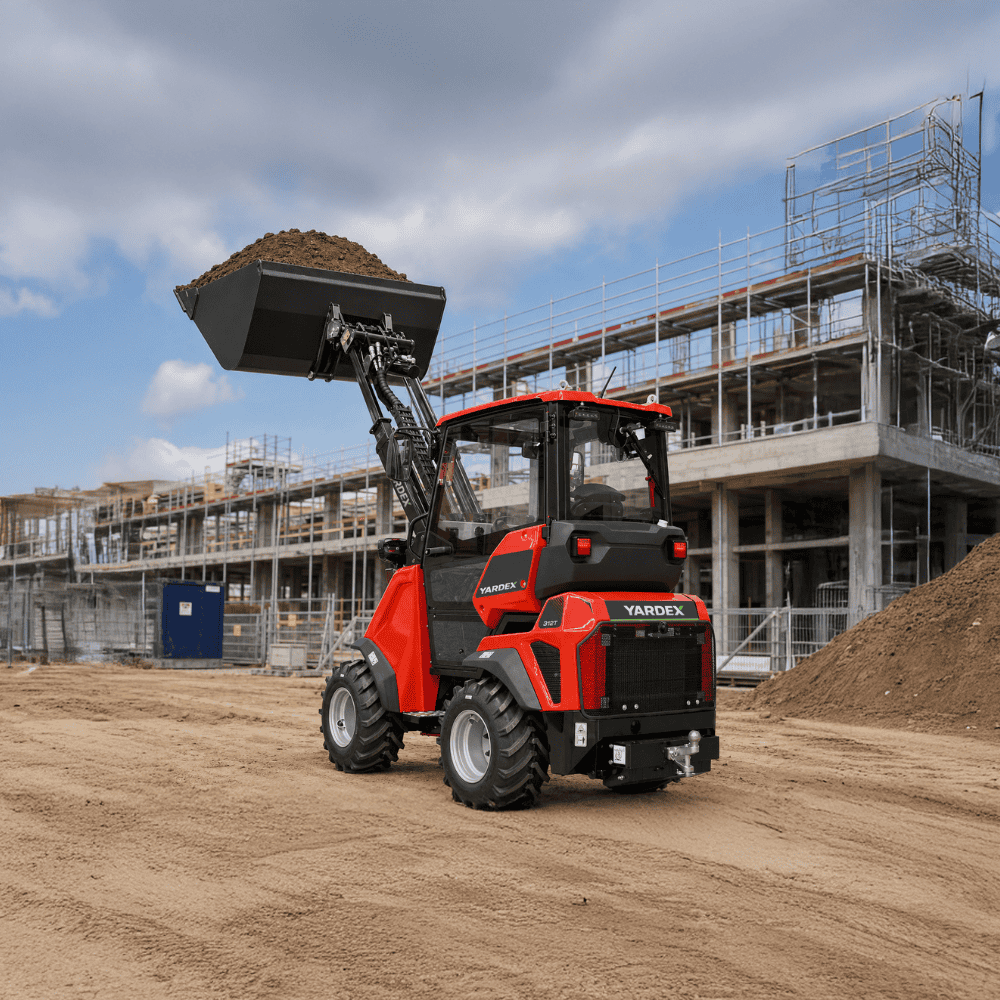

why choose the yardex 312T
This compact yet versatile telescopic handler o ers a 1.2-tonne lift capacity and 3.06m lift height within a compact 2.63m length and 1.25m width. Easy to transport and ideal for tight spaces, it handles harsh environments with its cab design, central articulation joint, anti-stall system and anti-slip valve for maximum traction.

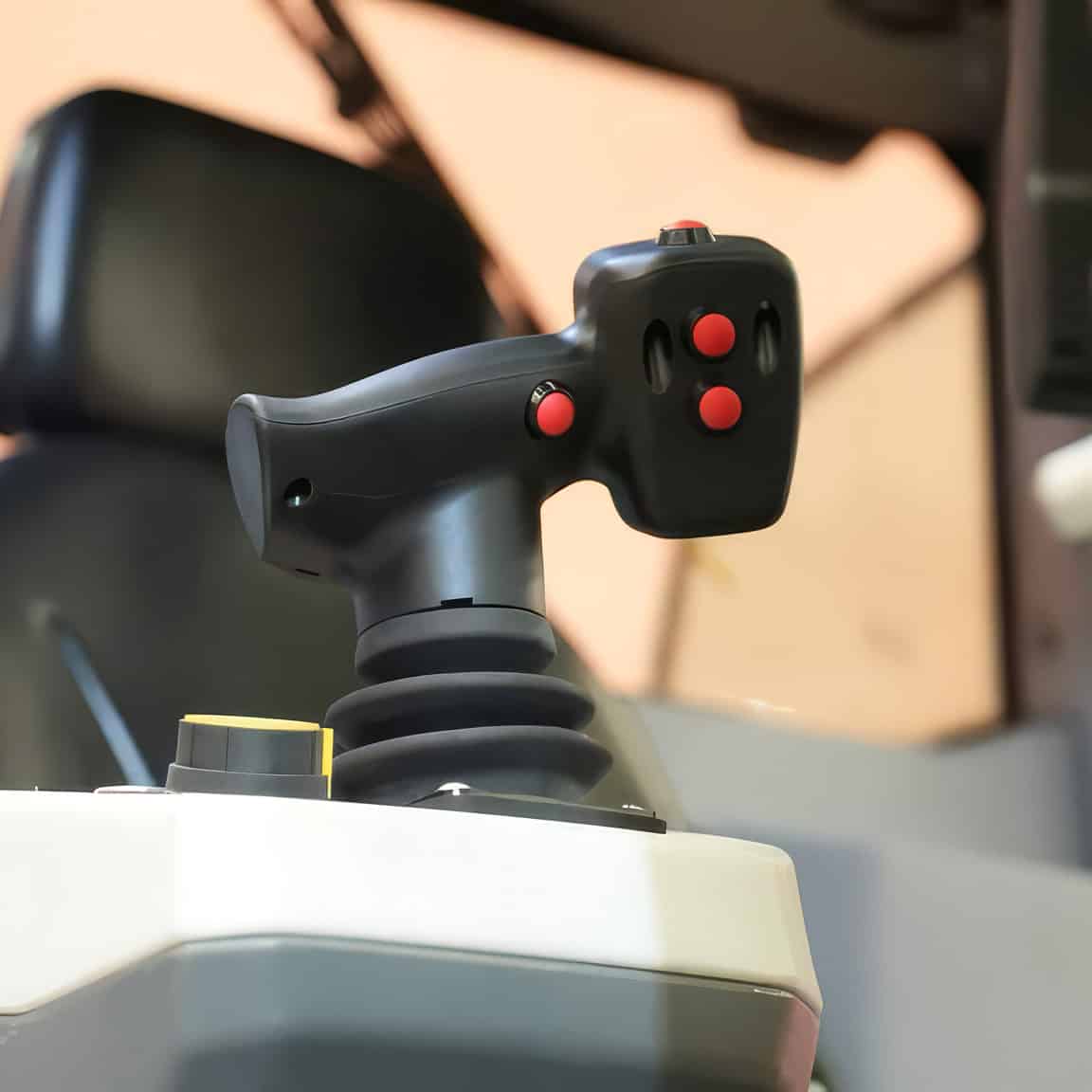

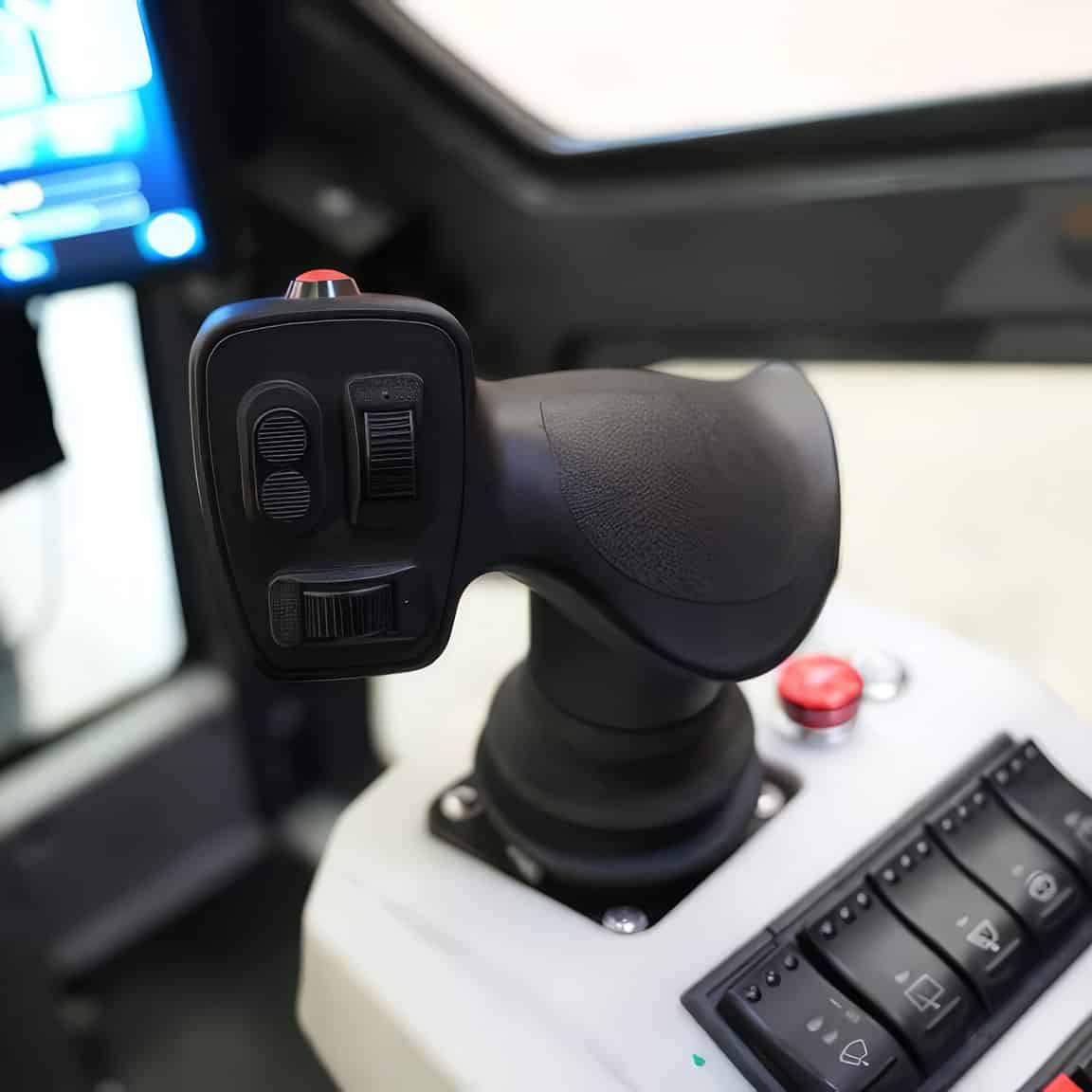

Powered by a reliable 24hp Kubota engine, twin gear pumps and Poclain drive motors, the Yardex 312T also features boom float, hand throttle and a premium proportional electro-hydraulic joystick for smooth, comfortable operation, backed by our UK & Irish parts network.
detailed overview
Click for more information.
- Kubota 24hp Euro 5 Engine
- 18.2 kW (Euro V Stage)
- Turbocharged Water-cooled Diesel
- Displacement: 1123cc
- Engine Speed: 3000rpm
- Cylinders: 3
- Cooling: Watercooled
- Hydrostatic Transmission
- Max Speed: 21 km/h
- Drive Pump Pressure: 320 (bar)
- Working Pump Flow: 50 (L/min)
- Steering: Articulated
- Service Brake: Hydrostatic
- Rated Load: 1200Kg
- Bucket Capacity: 0.38m³
- Machine Weight: 1660kg
- Overall Length: 2630mm
- Overall Width: 1250mm
- Overall Height: 2000mm
- Parking Brake: Electric
- Tyre Size: 26×12-12
- Fuel Type: Diesel
- Wheelbase: 1312mm
- Min Turning Radius: 2050mm
- Max Lifting Height: 3060mm
- Max Dumping Height: 3060mm
- Engine Brand: Kubota
