key specifications
engine power
18.2kW
Track Width
1550mm
fuel tank
33L
max dump
height
3060mm
machine
weight
2600 - 2880kg
bucket
capacity
0.065m3
built for performance
why choose the yardex YX27

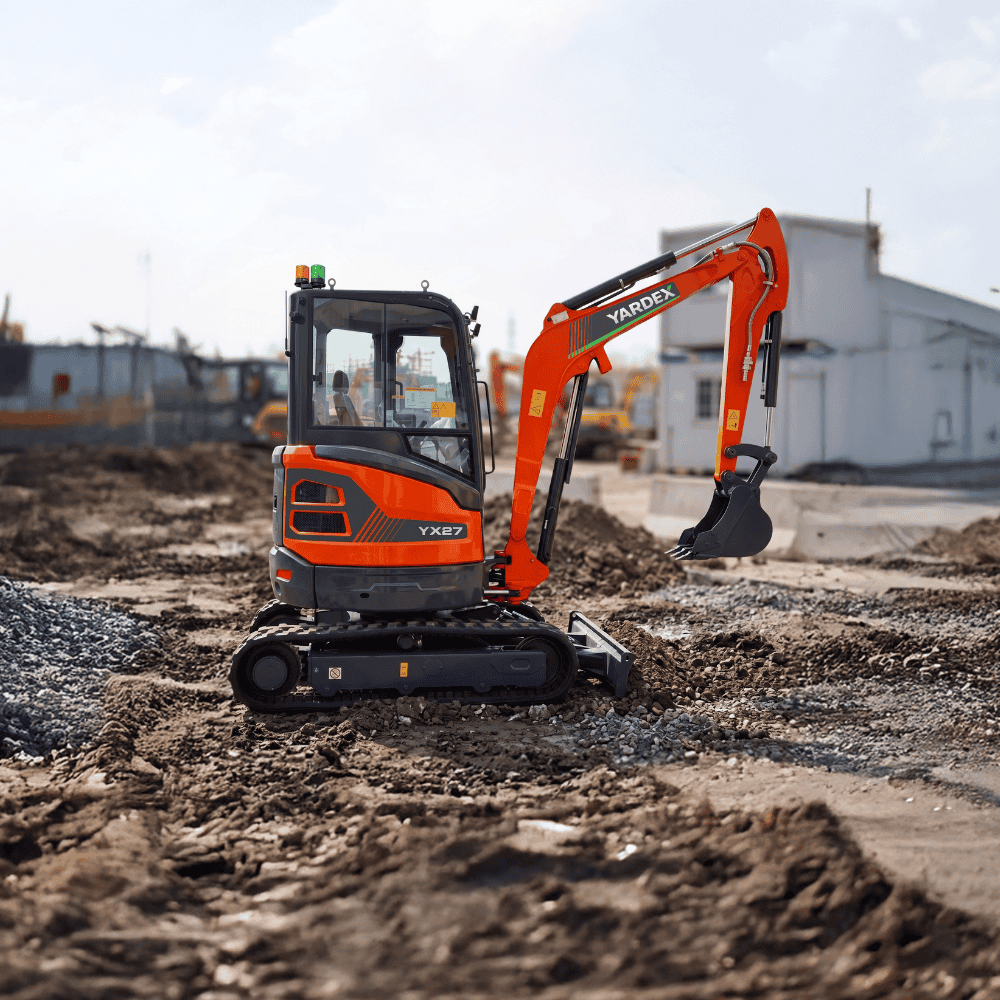

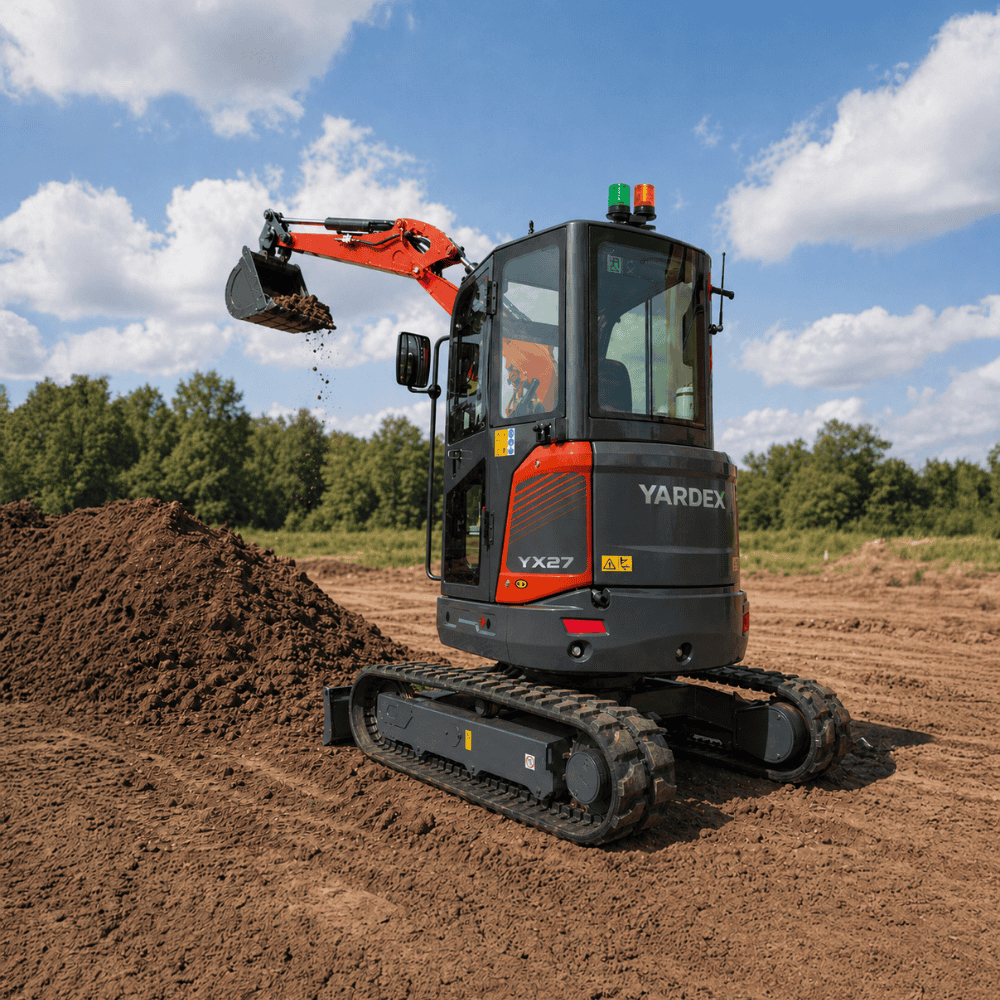

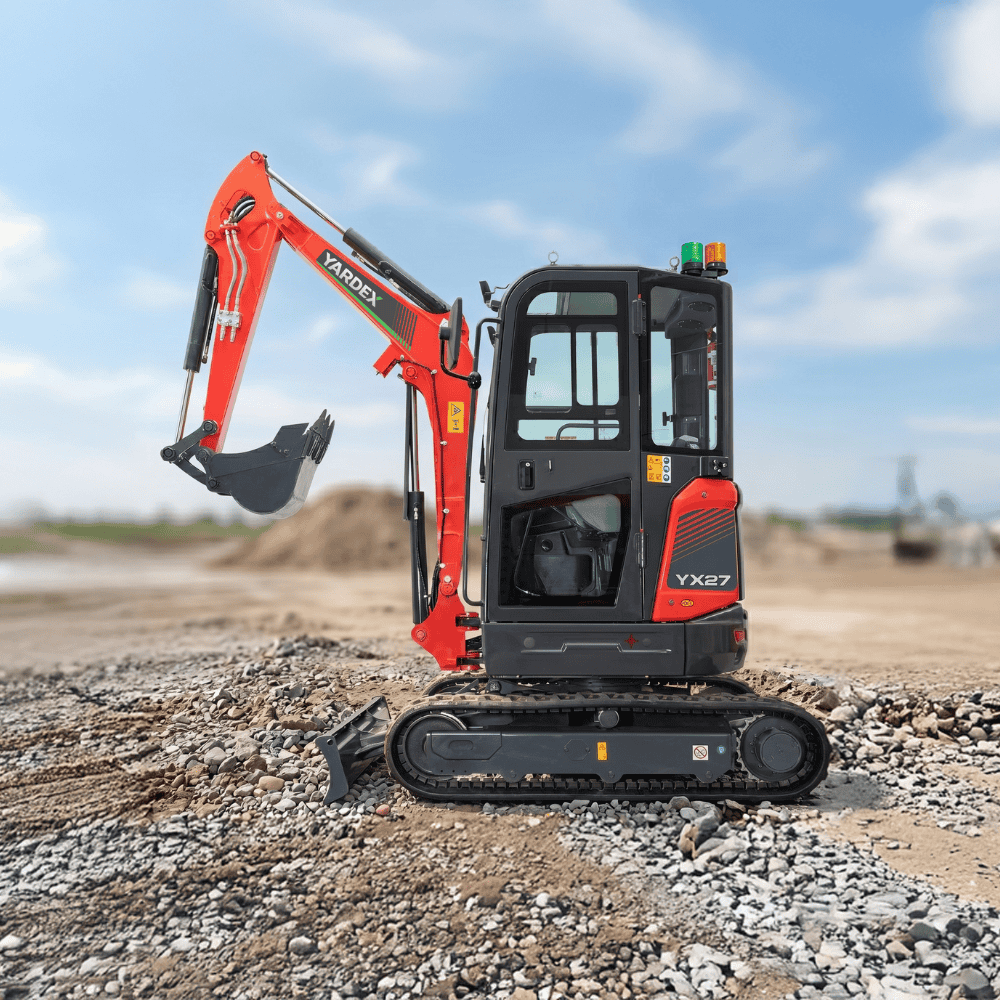

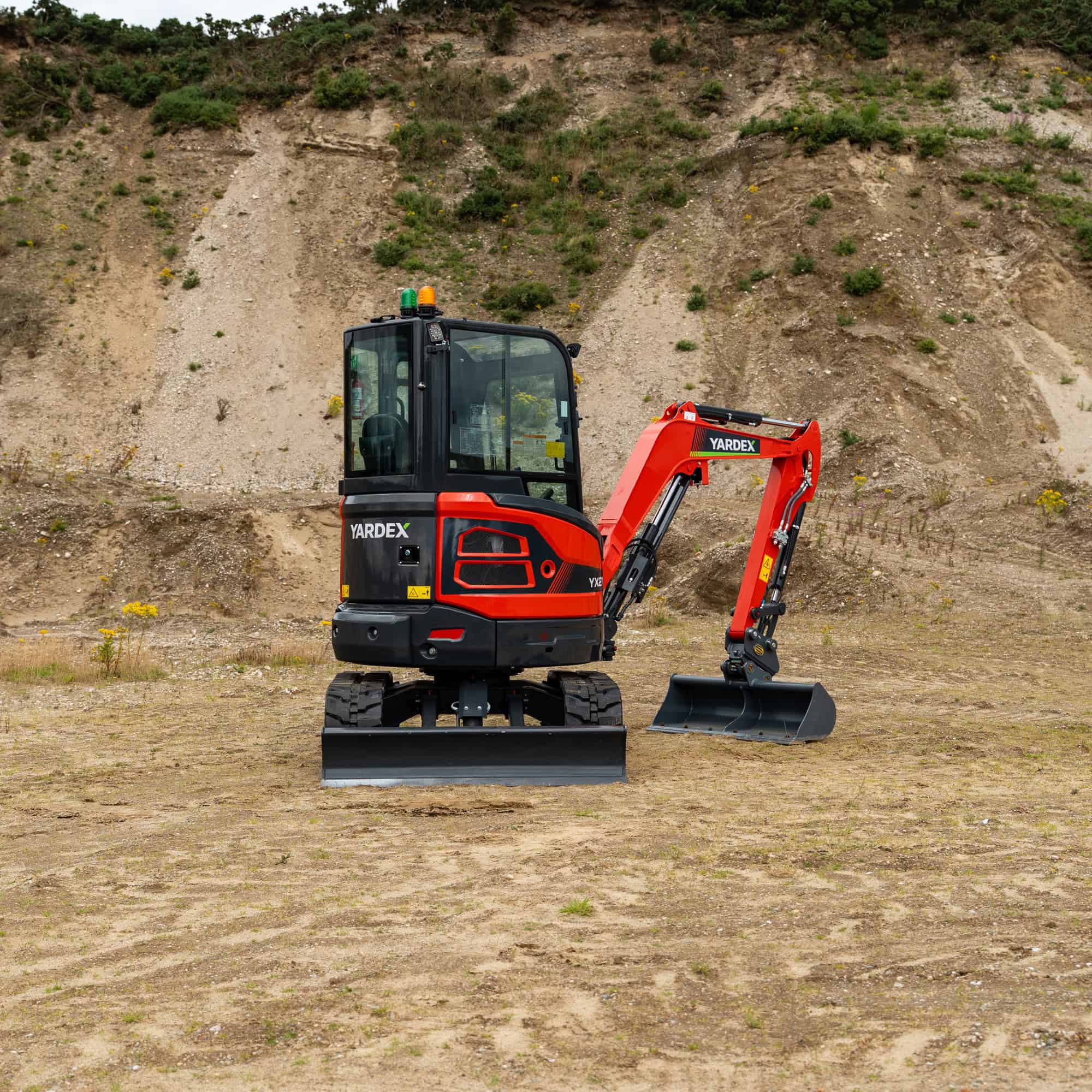

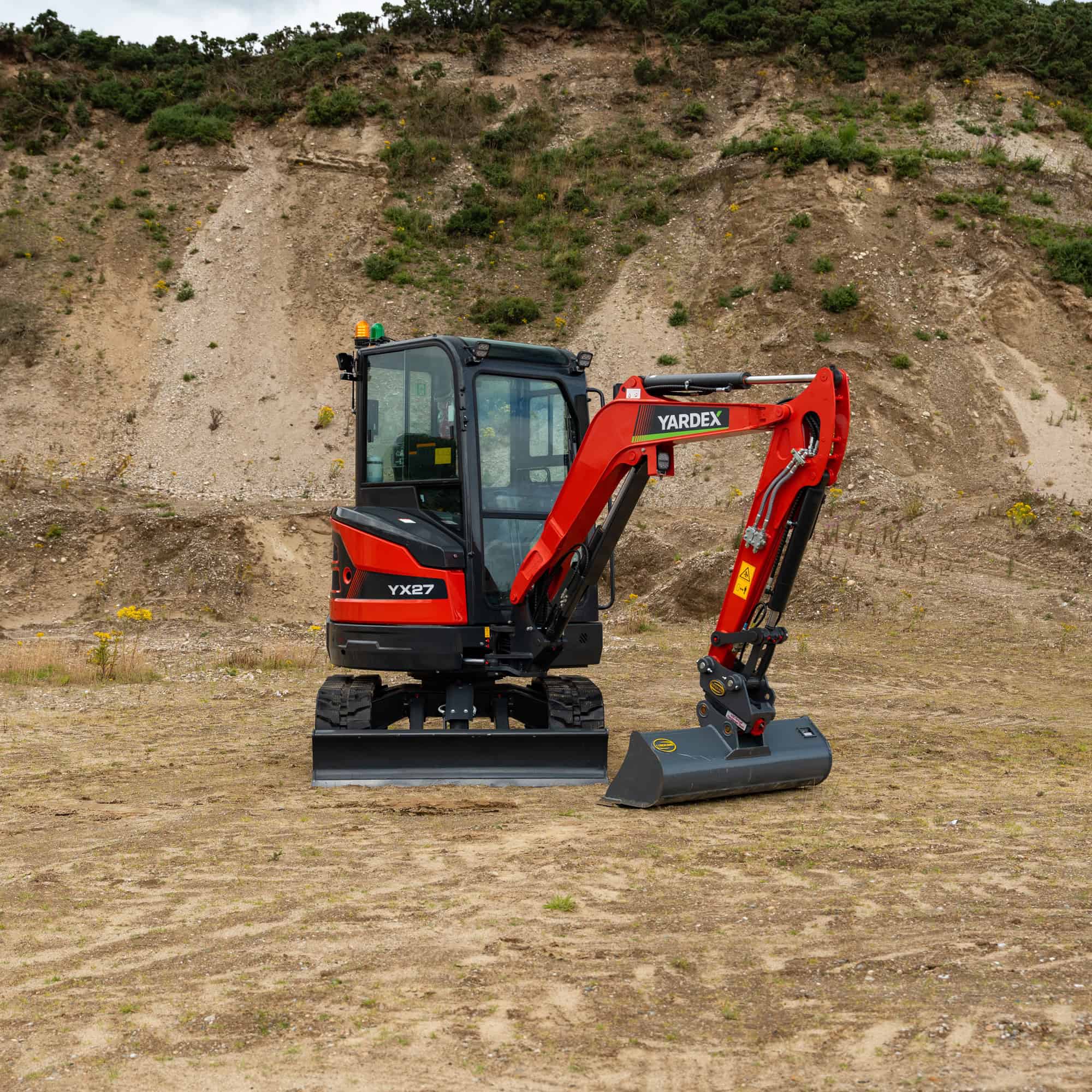

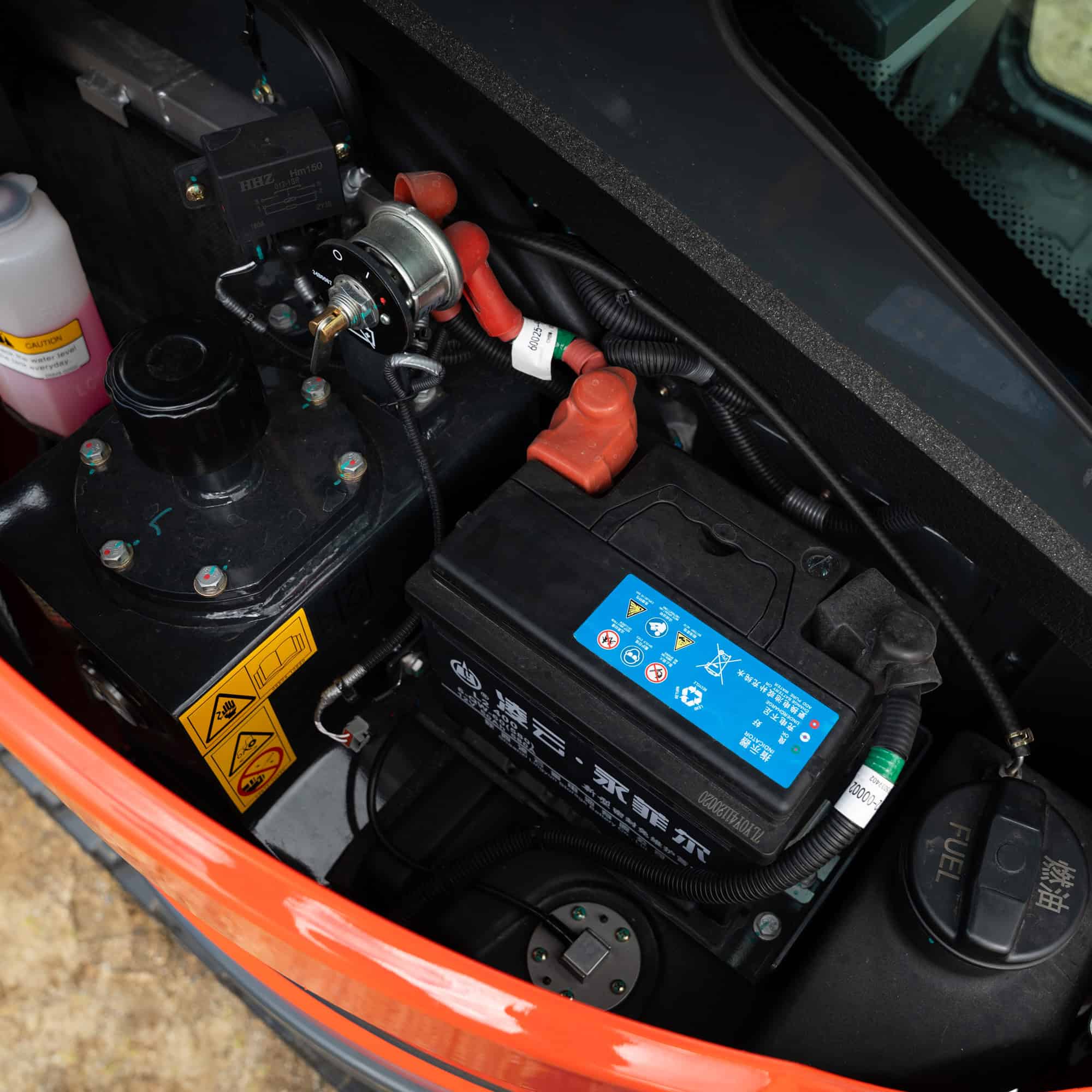

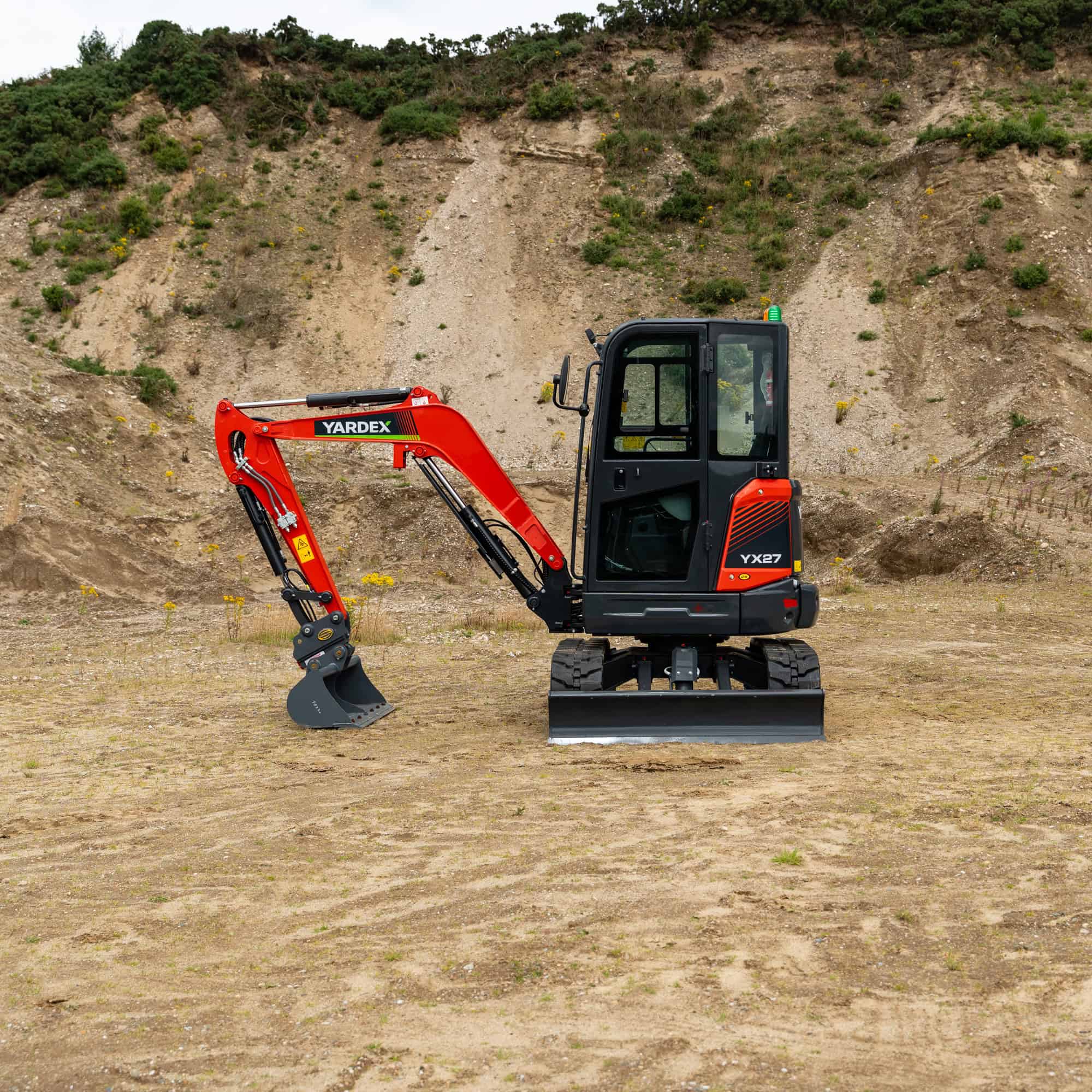

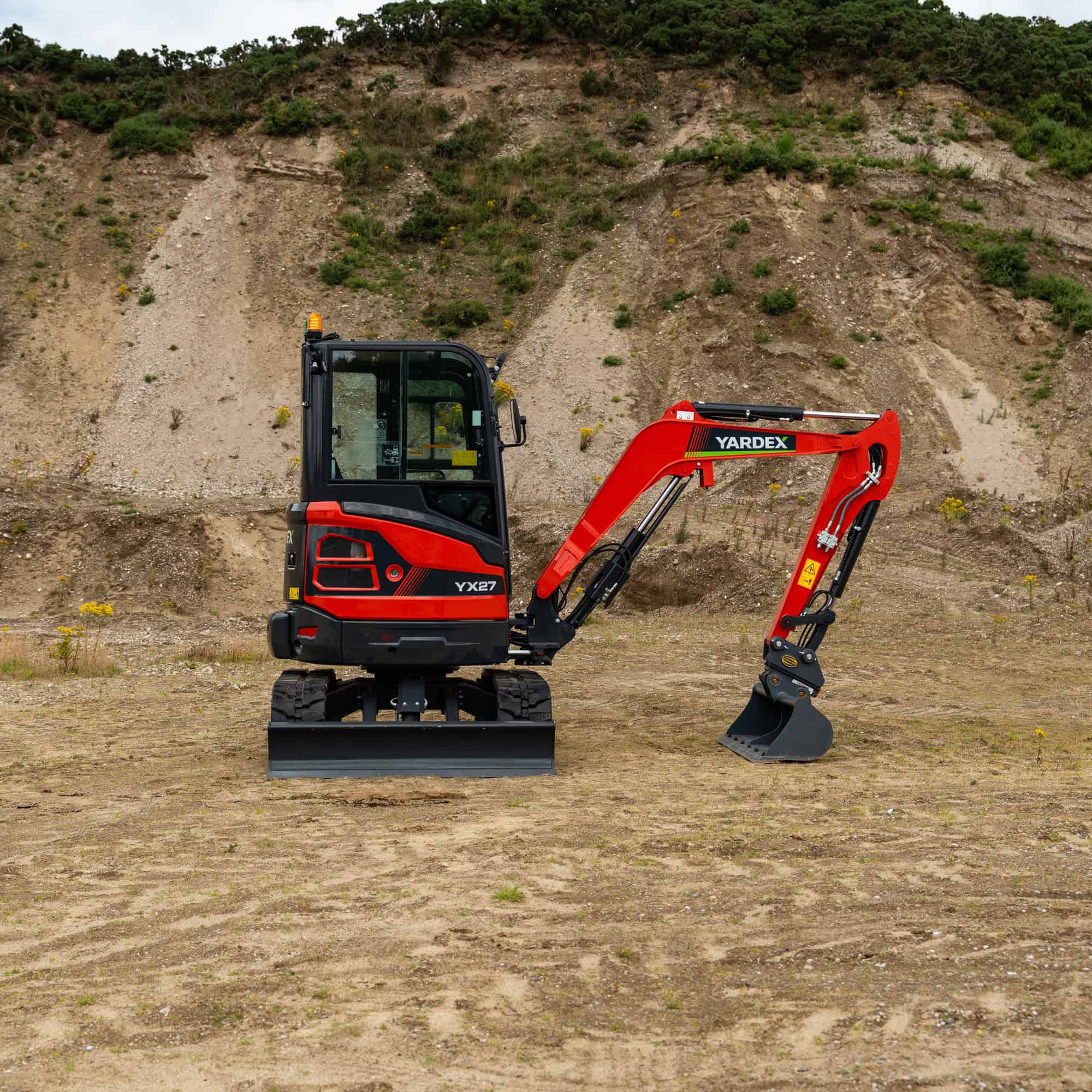

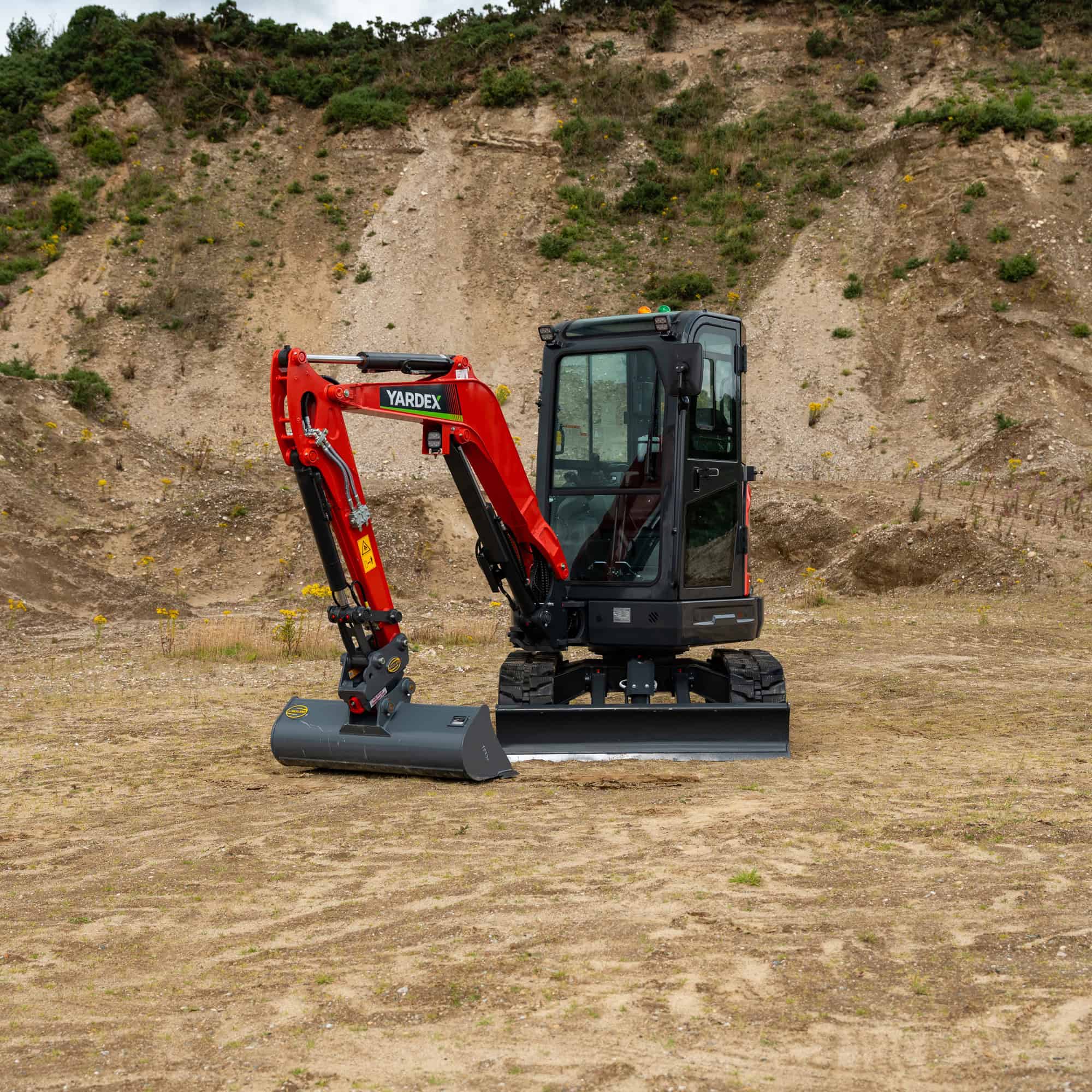

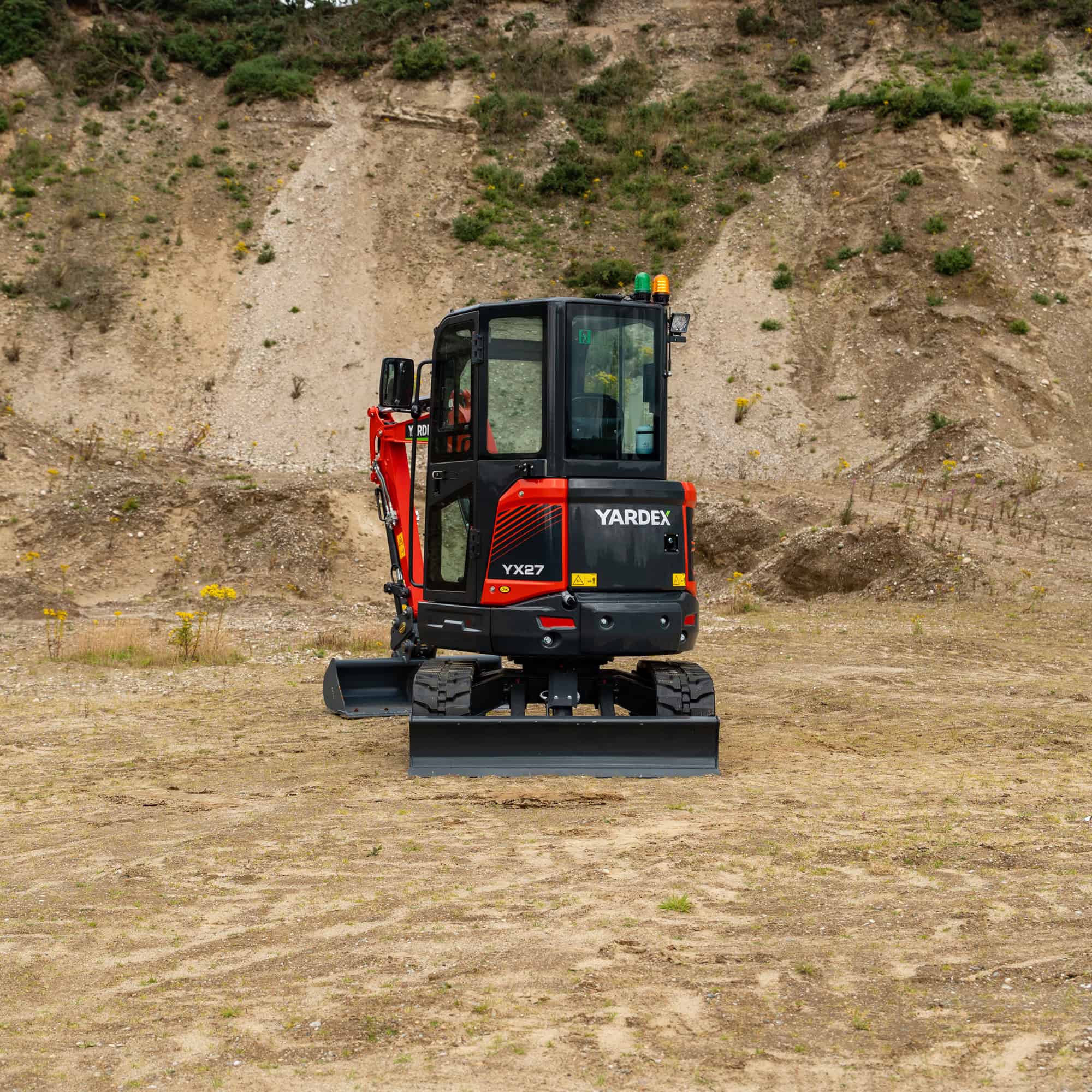

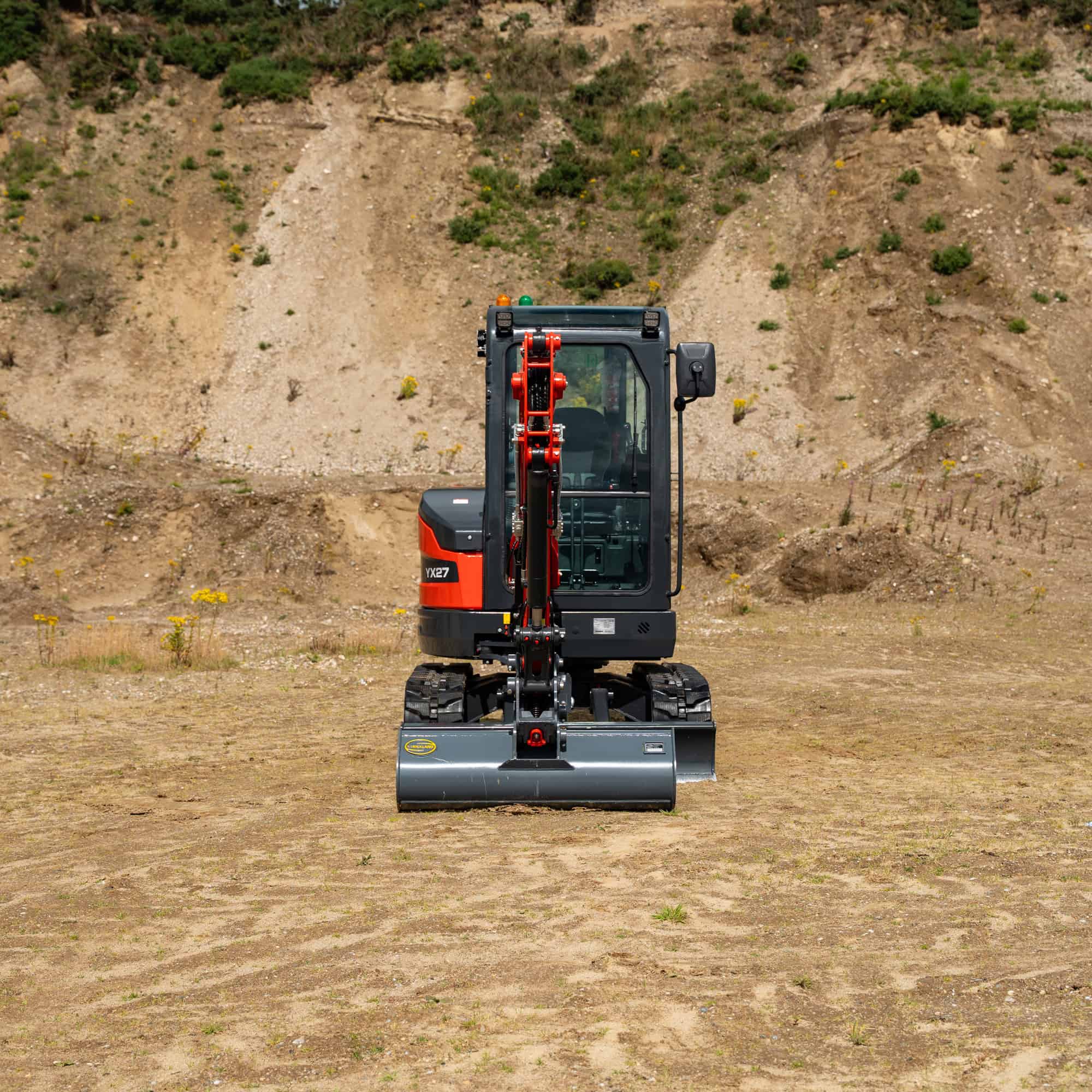

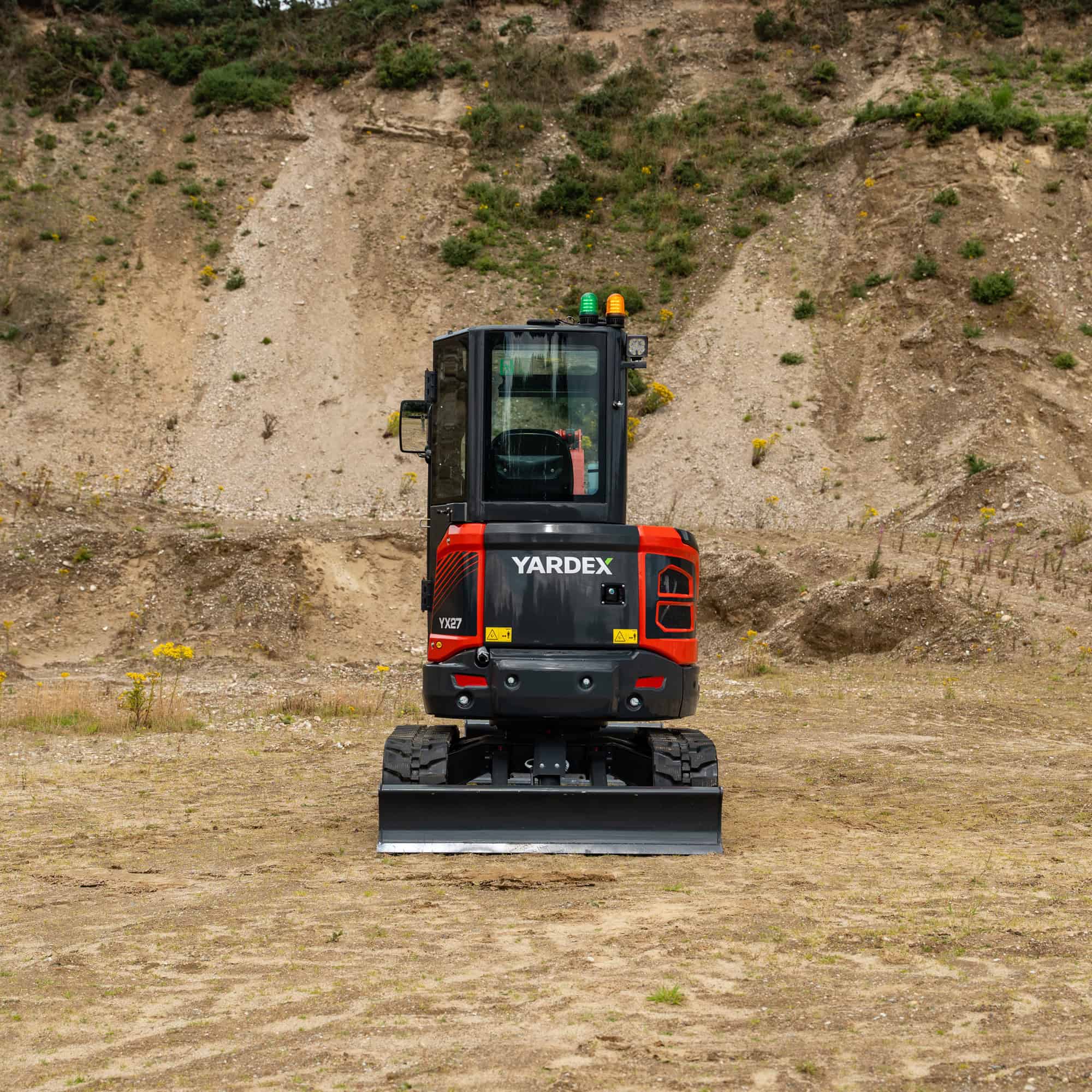

This compact Yardex mini excavator is powered by a reliable 24.4hp Kubota engine and built for construction, agricultural and landscaping work.

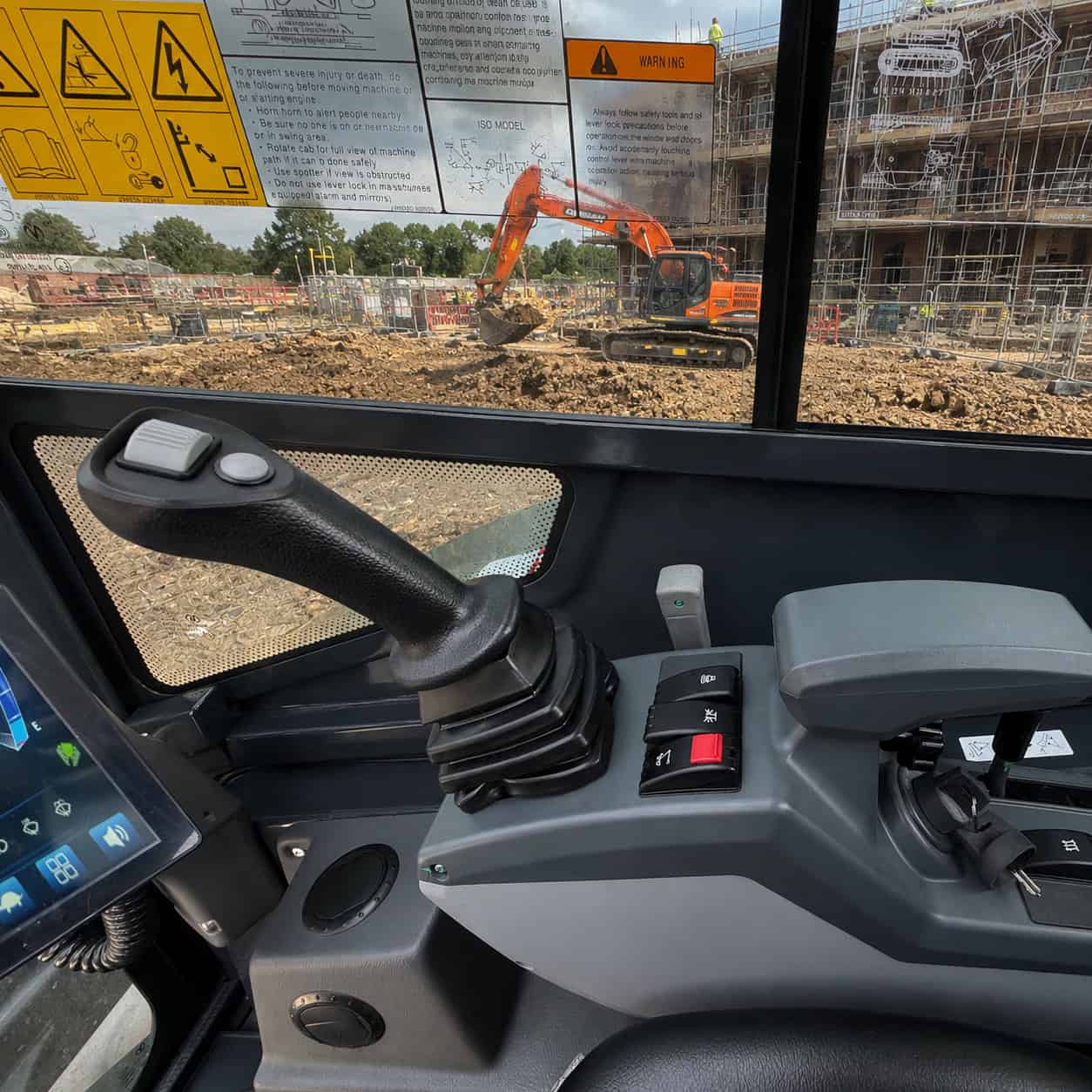

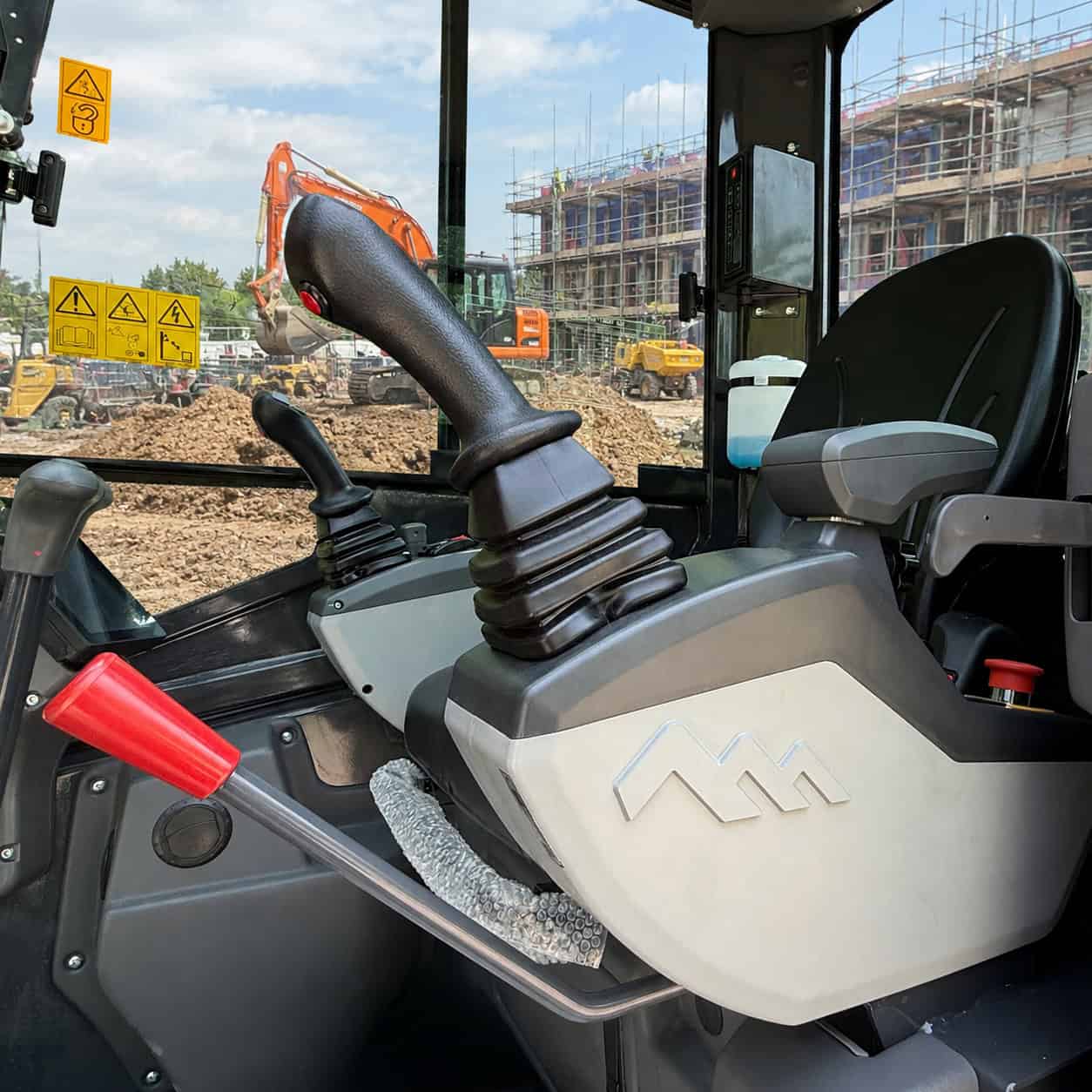

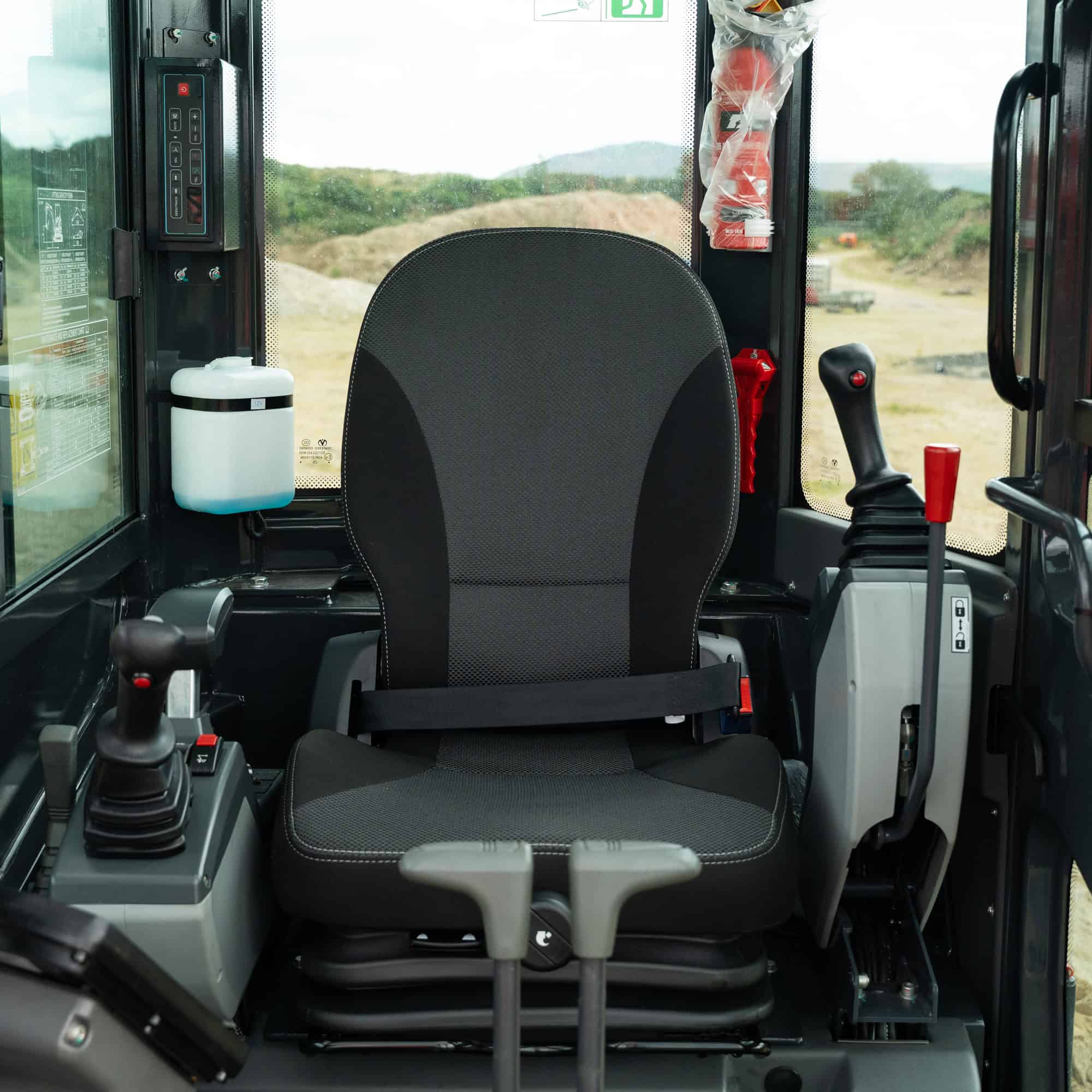

With a heated cab and hydraulic quick hitch, it delivers strong performance and versatility, backed by our UK & Irish parts support network.
detailed overview
Click for more information.

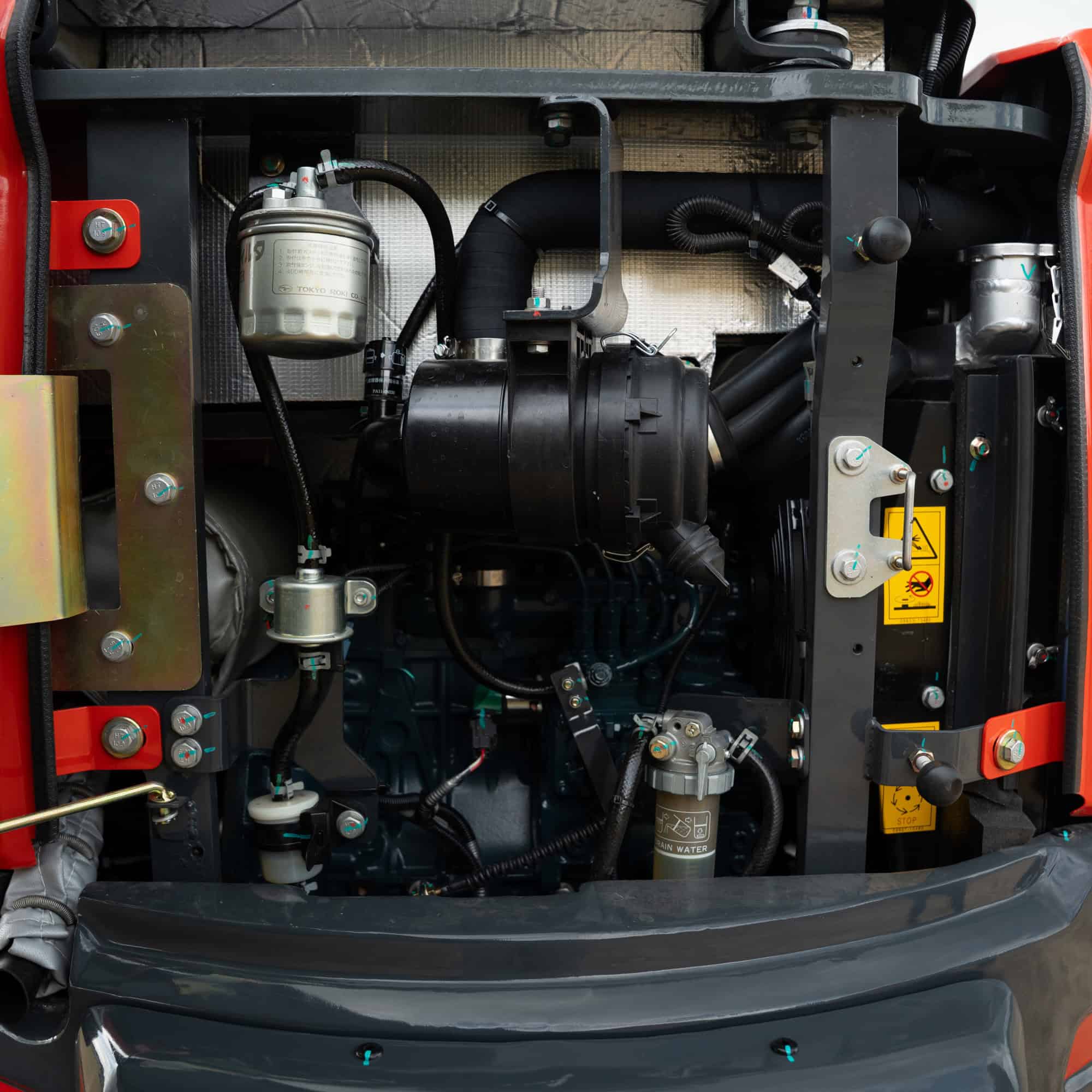

- Brand Kubota
- Model D1105
- Output 23hp
- Rubber shoe width (mm) 300
- Track length (mm) 2020
- Track Gauge (mm) 1250
- Track grounding Length (mm) 1540
- Max digging height (mm) 4390
- Max dumping height (mm) 3060
- Max digging depth (mm) 2800
- Max. digging radius (mm) 4800
- Tail swing Radius (mm) 775
- Max digging force – Arm (kN) 14.8
- Max digging force – Bucket (kN) 24
- Hengli Pump

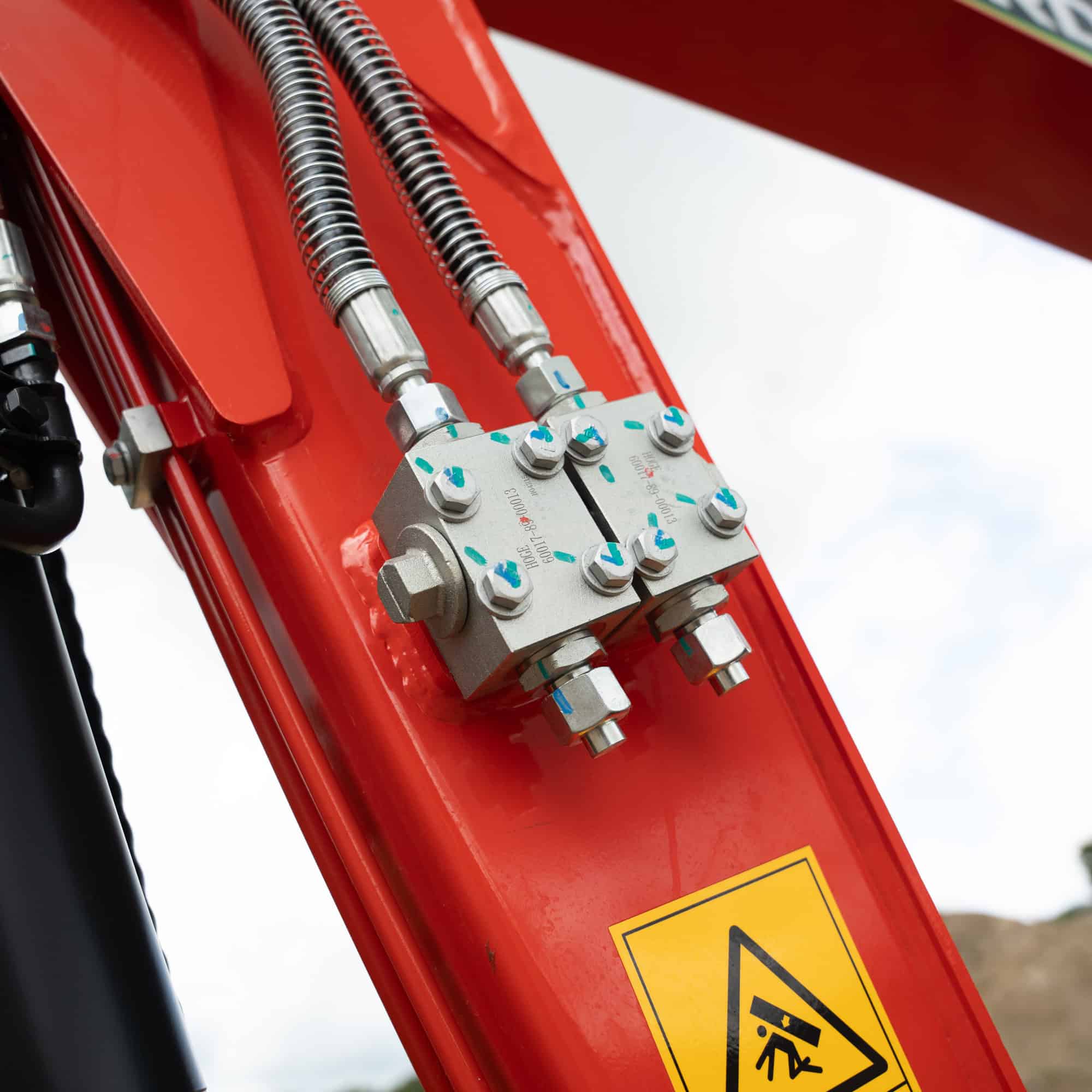

- Auxillary Hydraulic Line

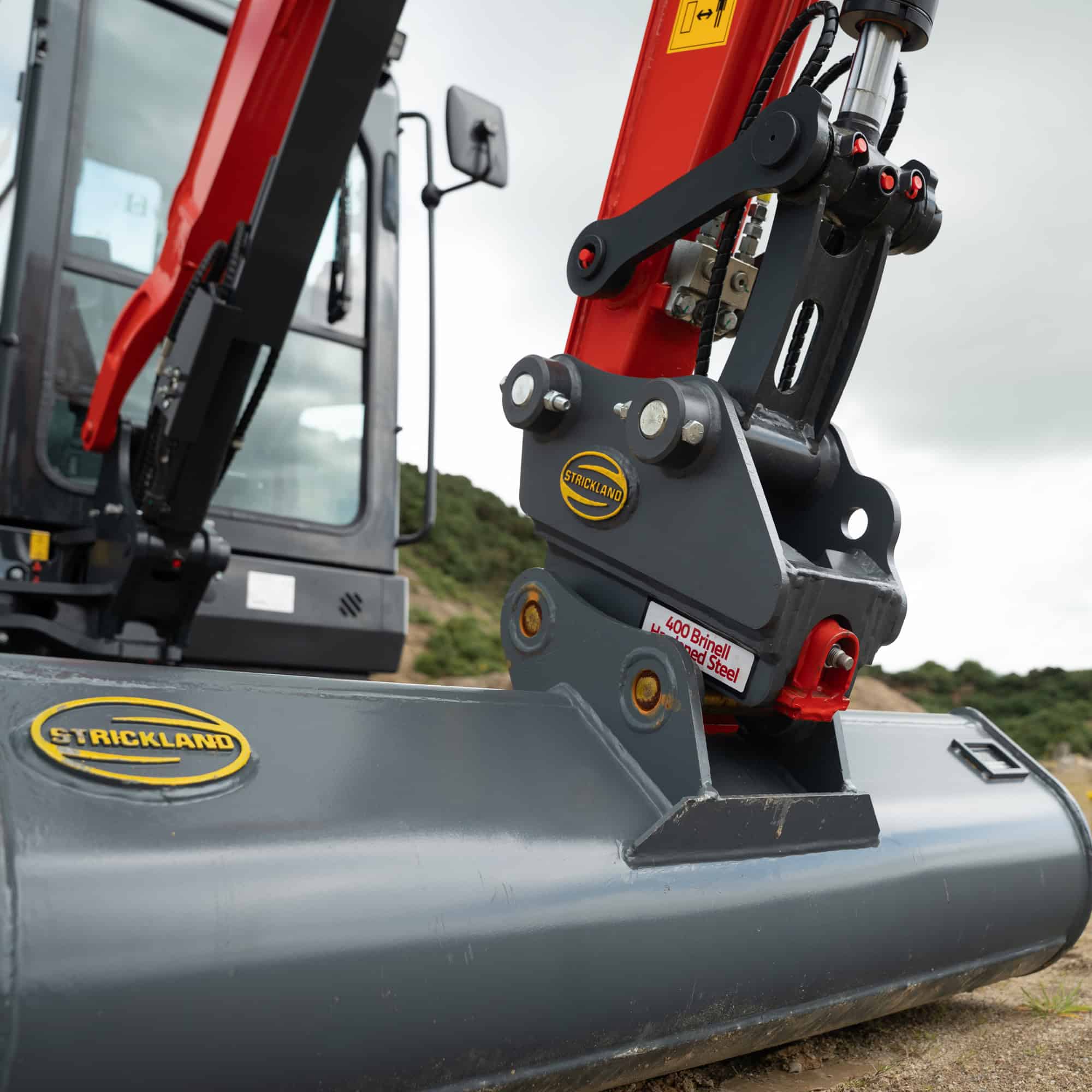

- Hydraulic Quick Hitch
- Twin Auxillary Lines
- kpa 29
- Flow rate (L/min) 86.4
- Hydraulic pressure (Mpa) 24.5
- Overall length (mm) 4200
- Overall height (mm) 2735
- Overall width (mm) 1550
- Ground clearance (mm) 575
