key specifications
engine power
10.2kW
track width
750mm
fuel tank
12L
max dump
height
2225mm
machine
weight
1200kg
max bucket
capacity
0.024m3
built for performance
why choose the yardex YX12

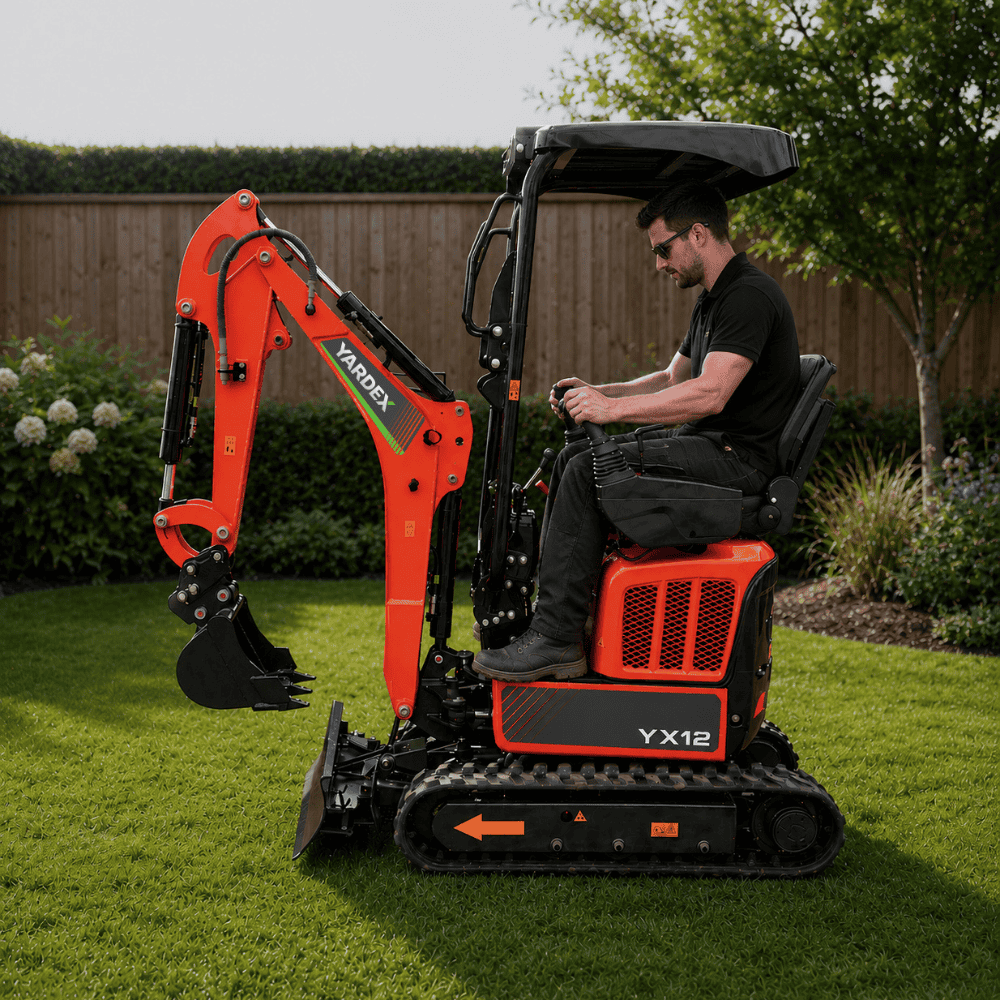

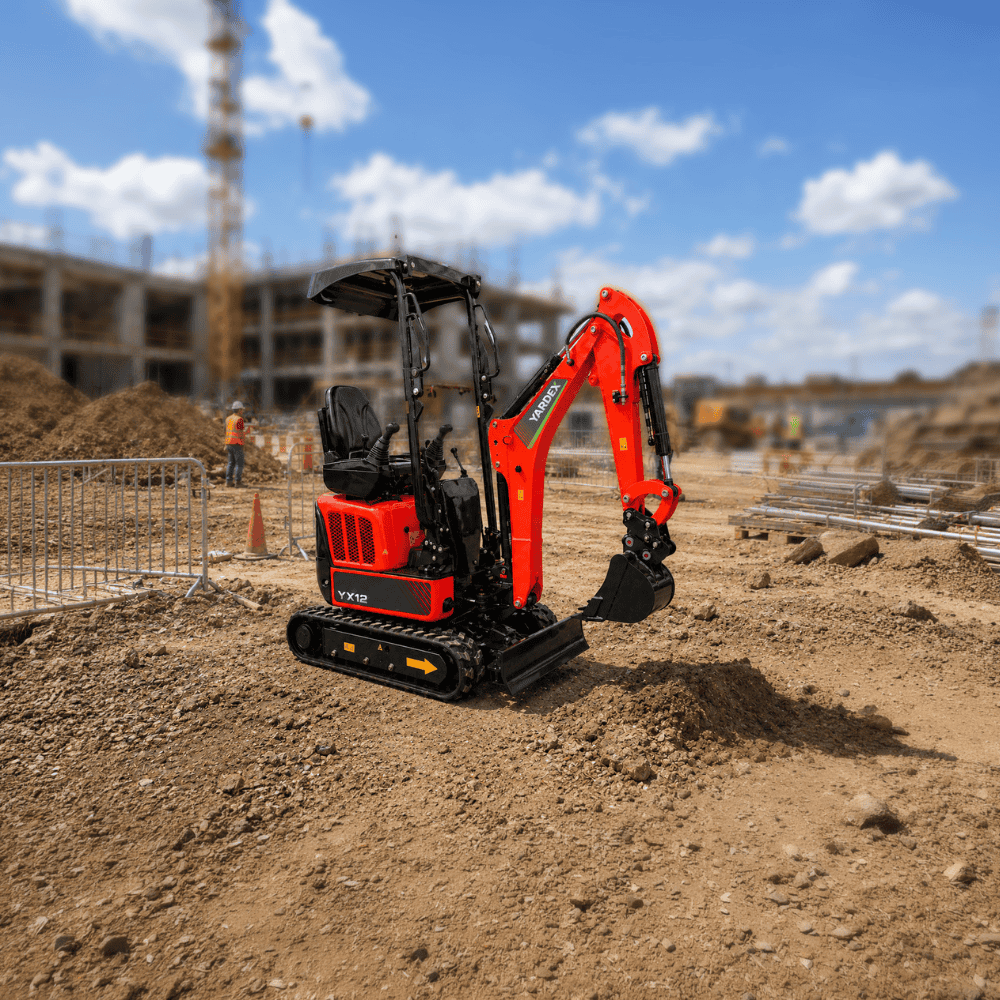

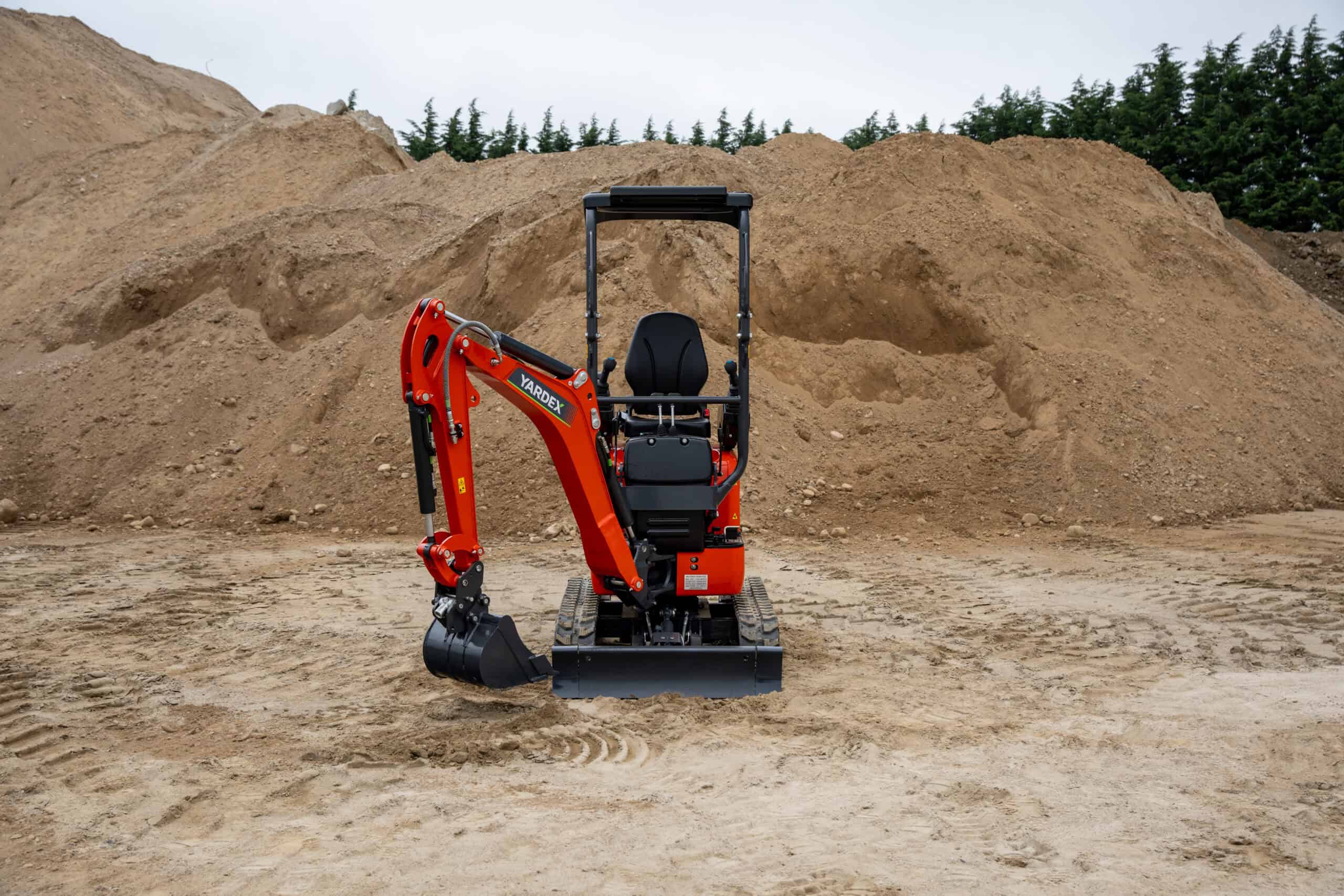

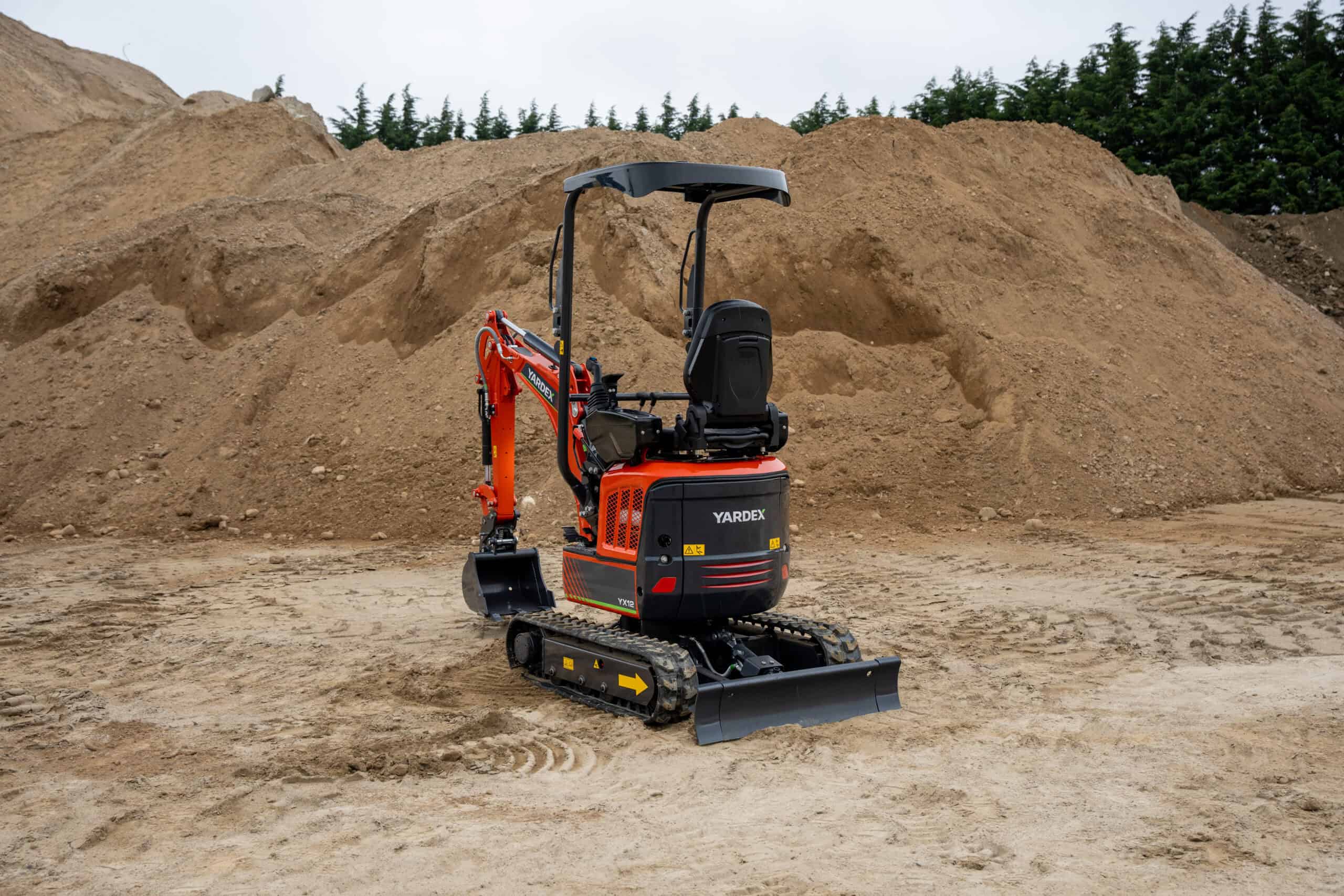

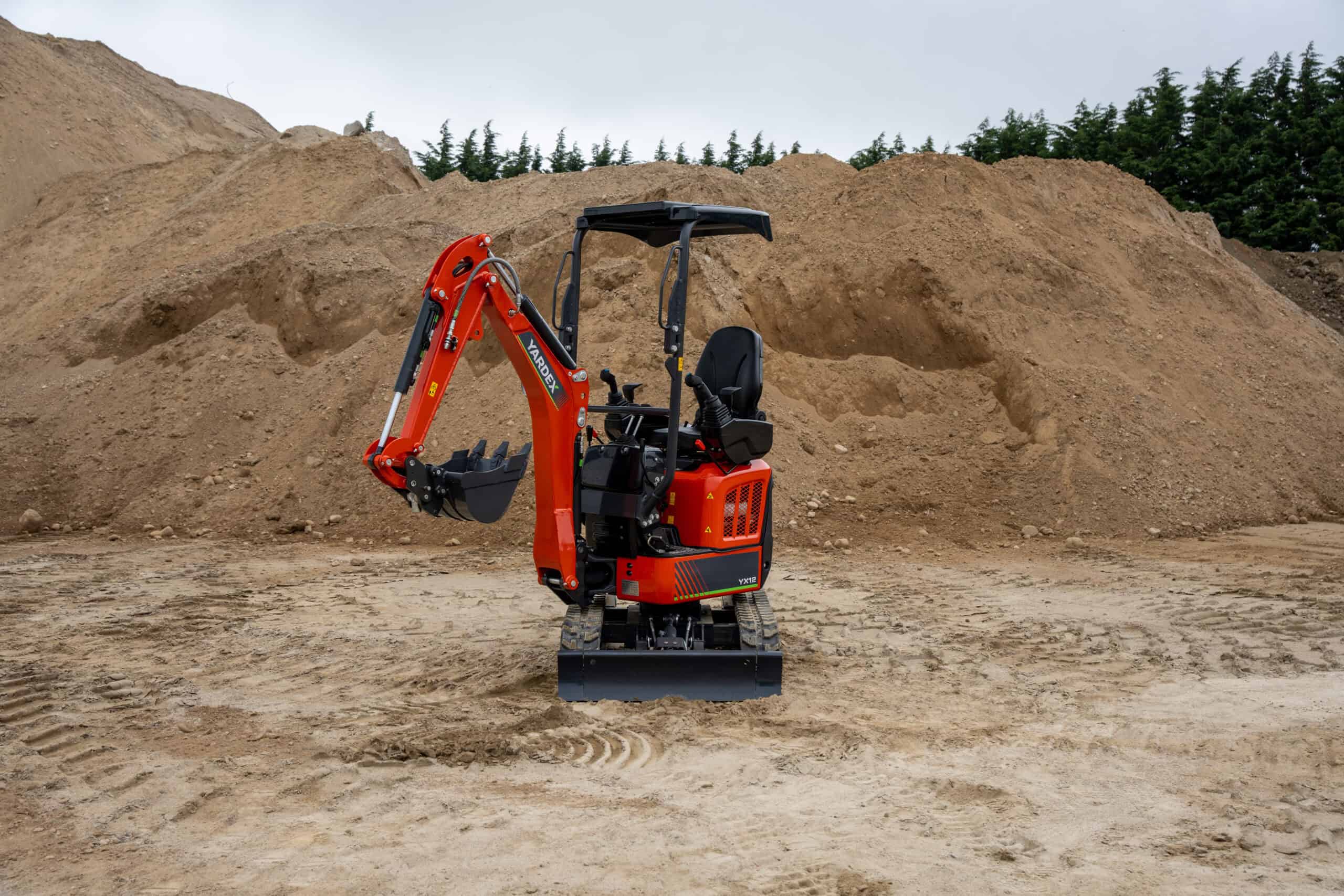

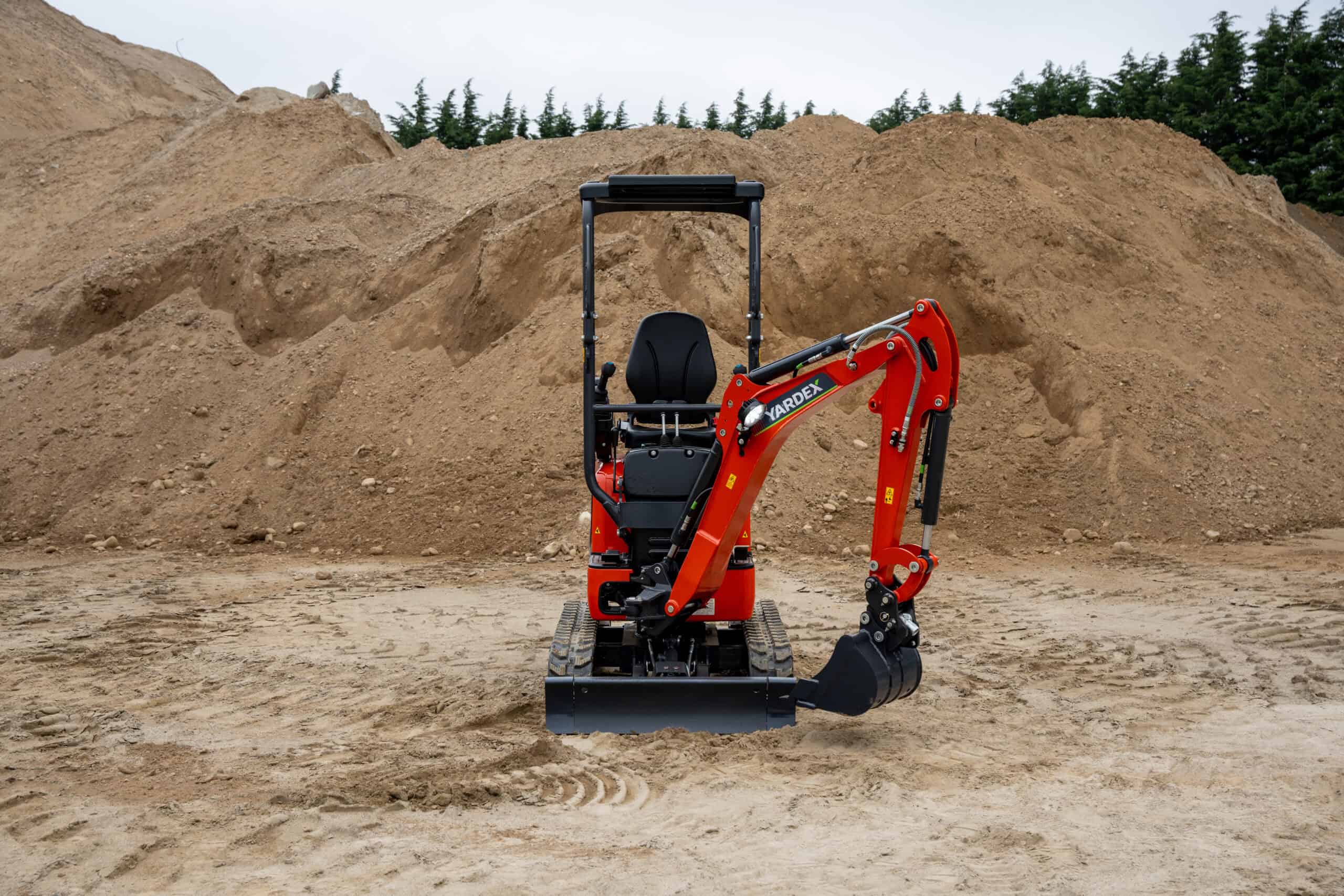

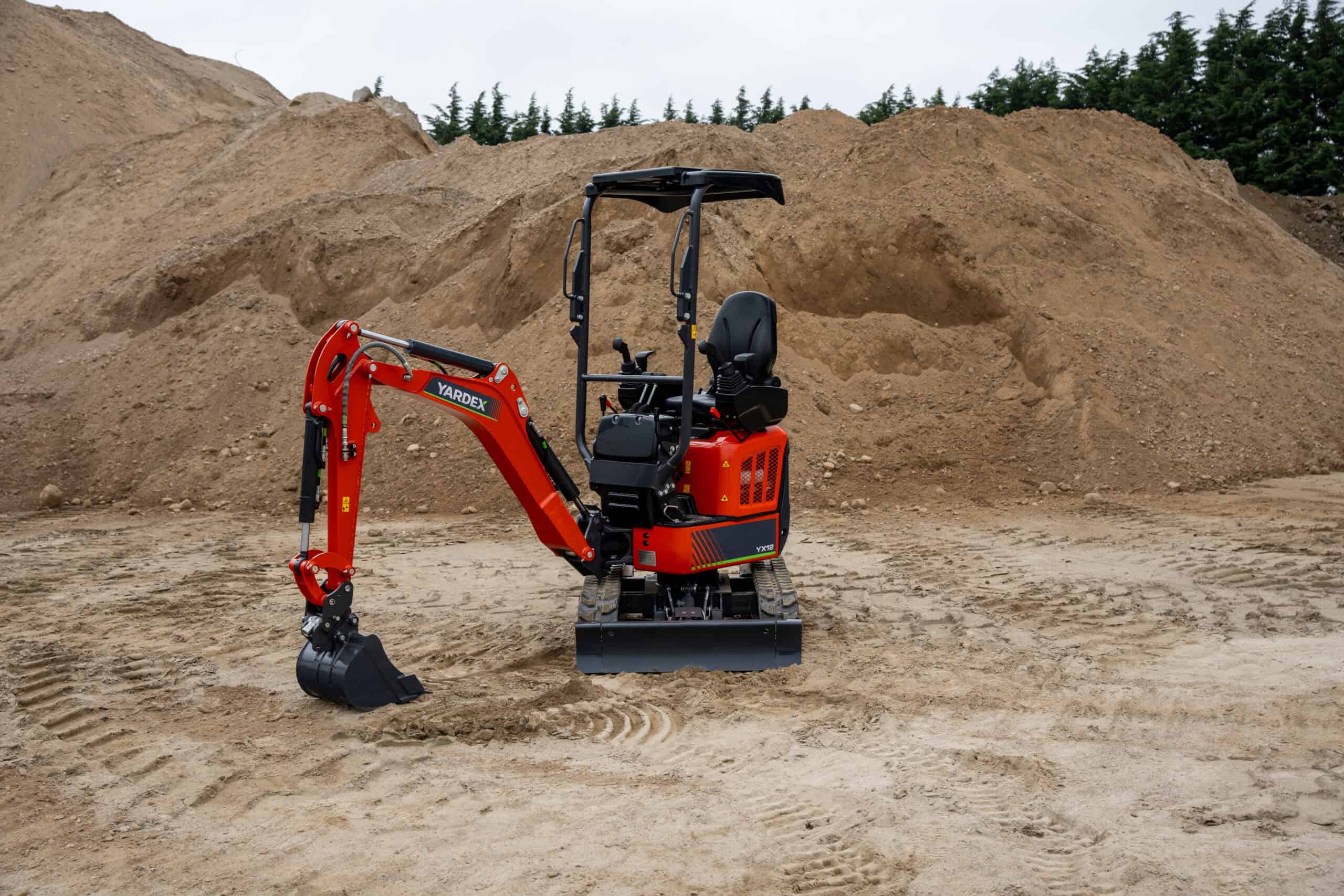

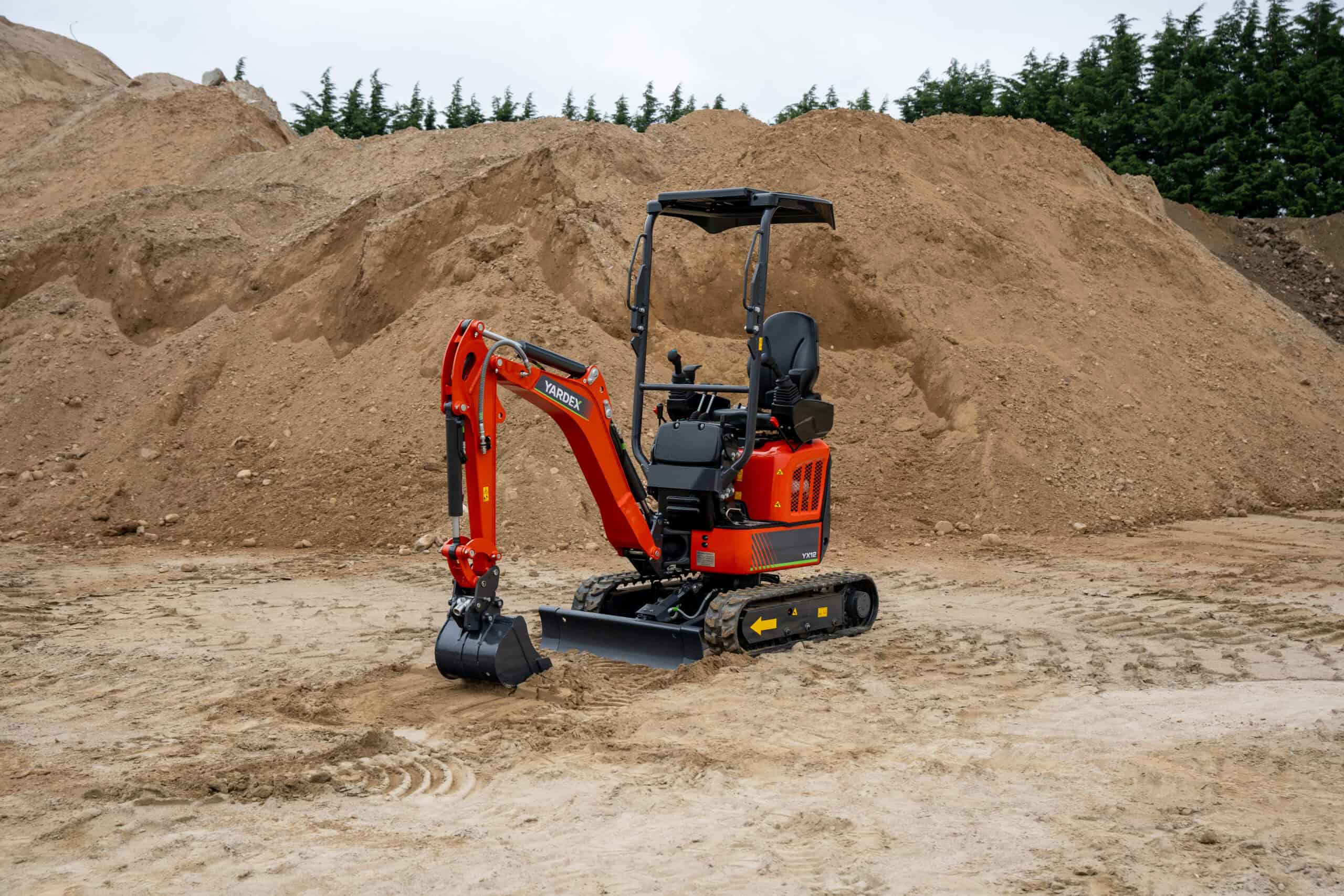

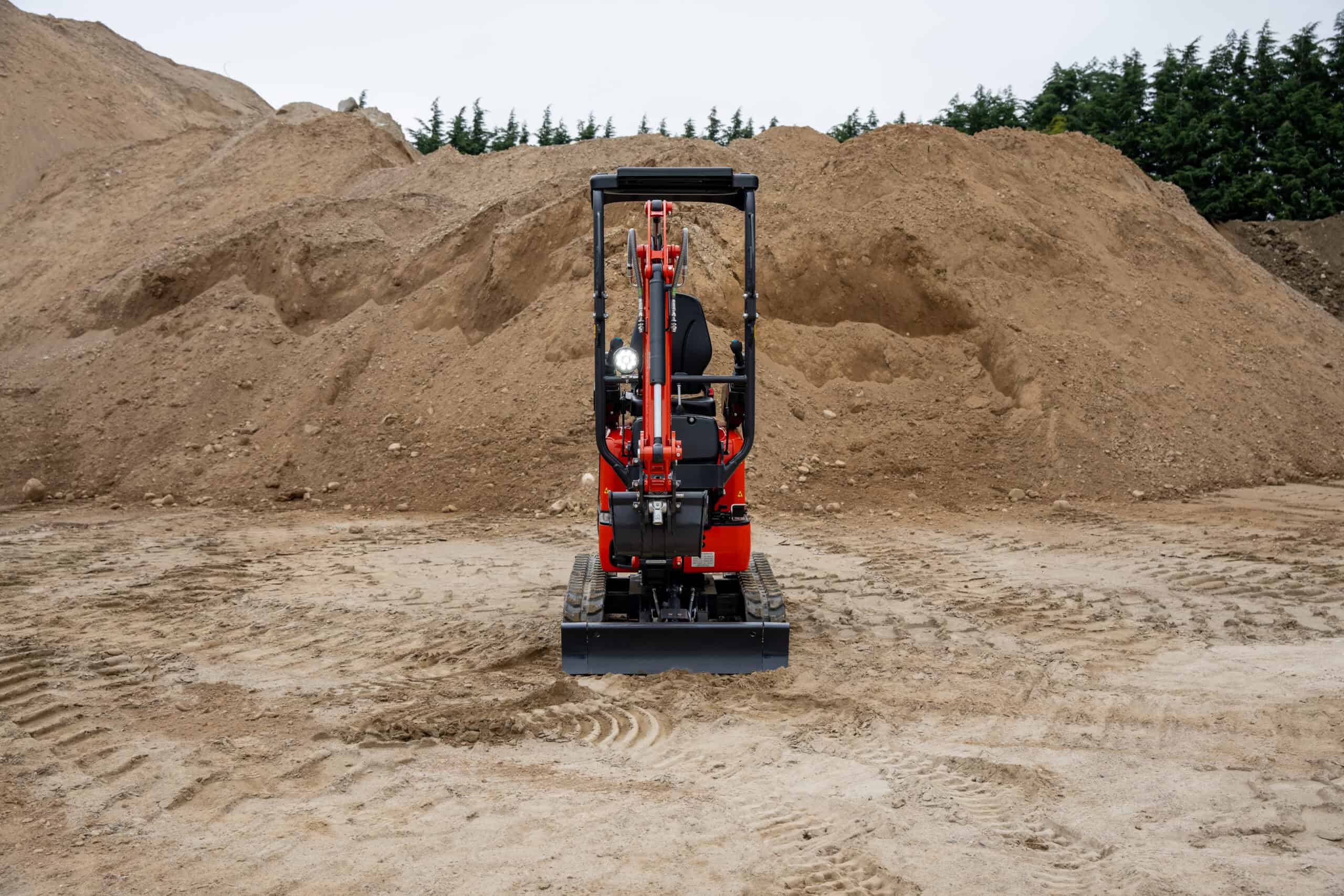

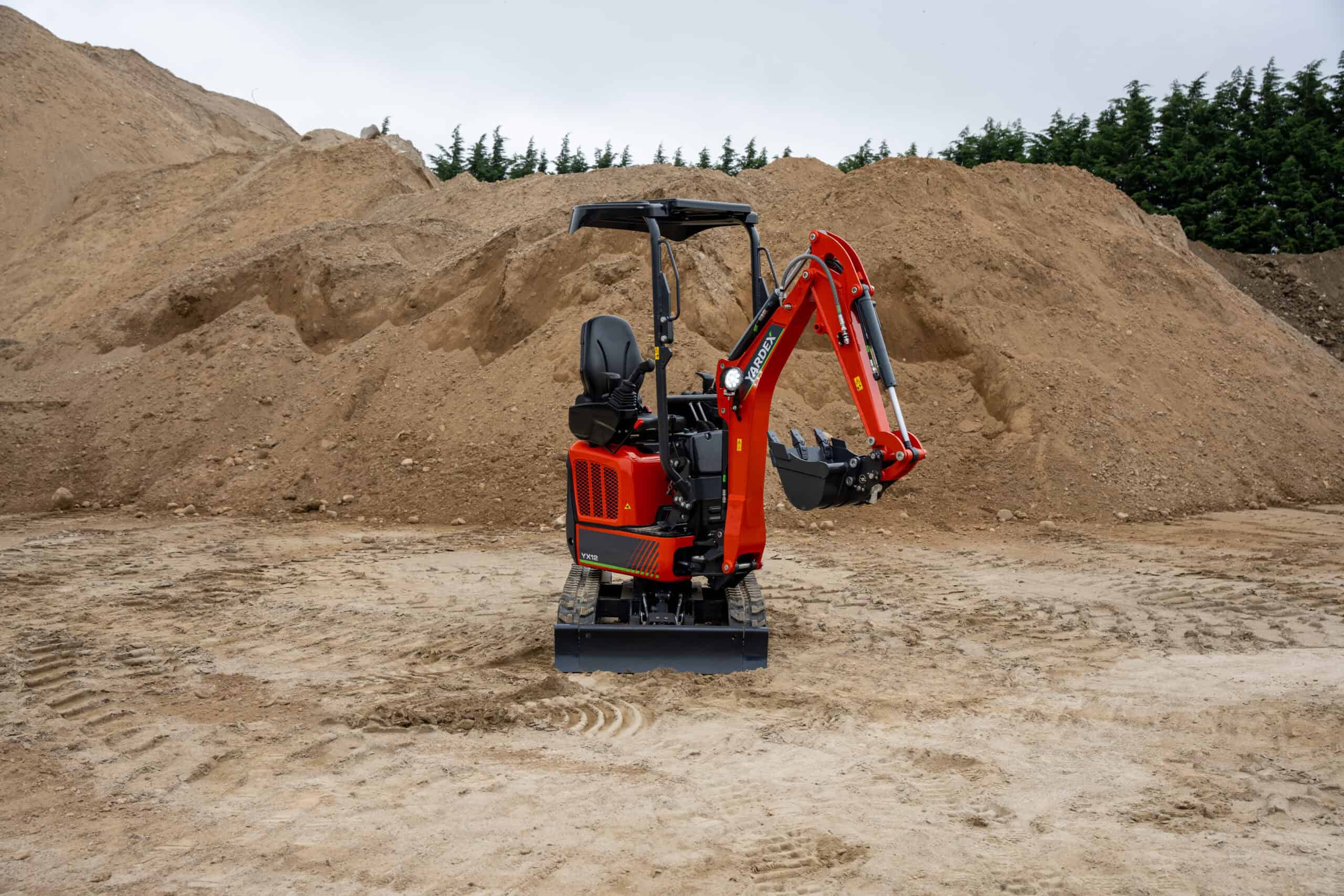

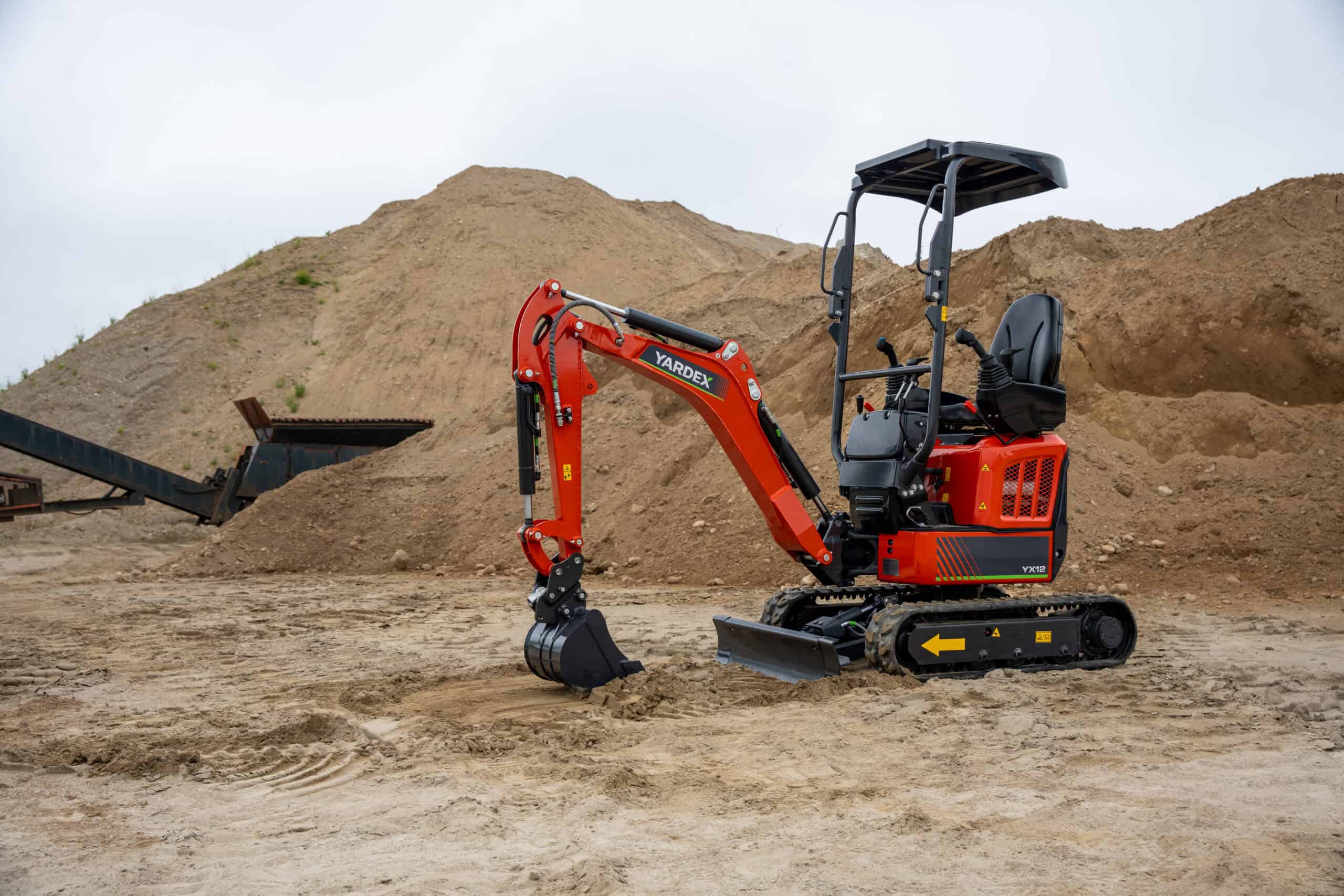

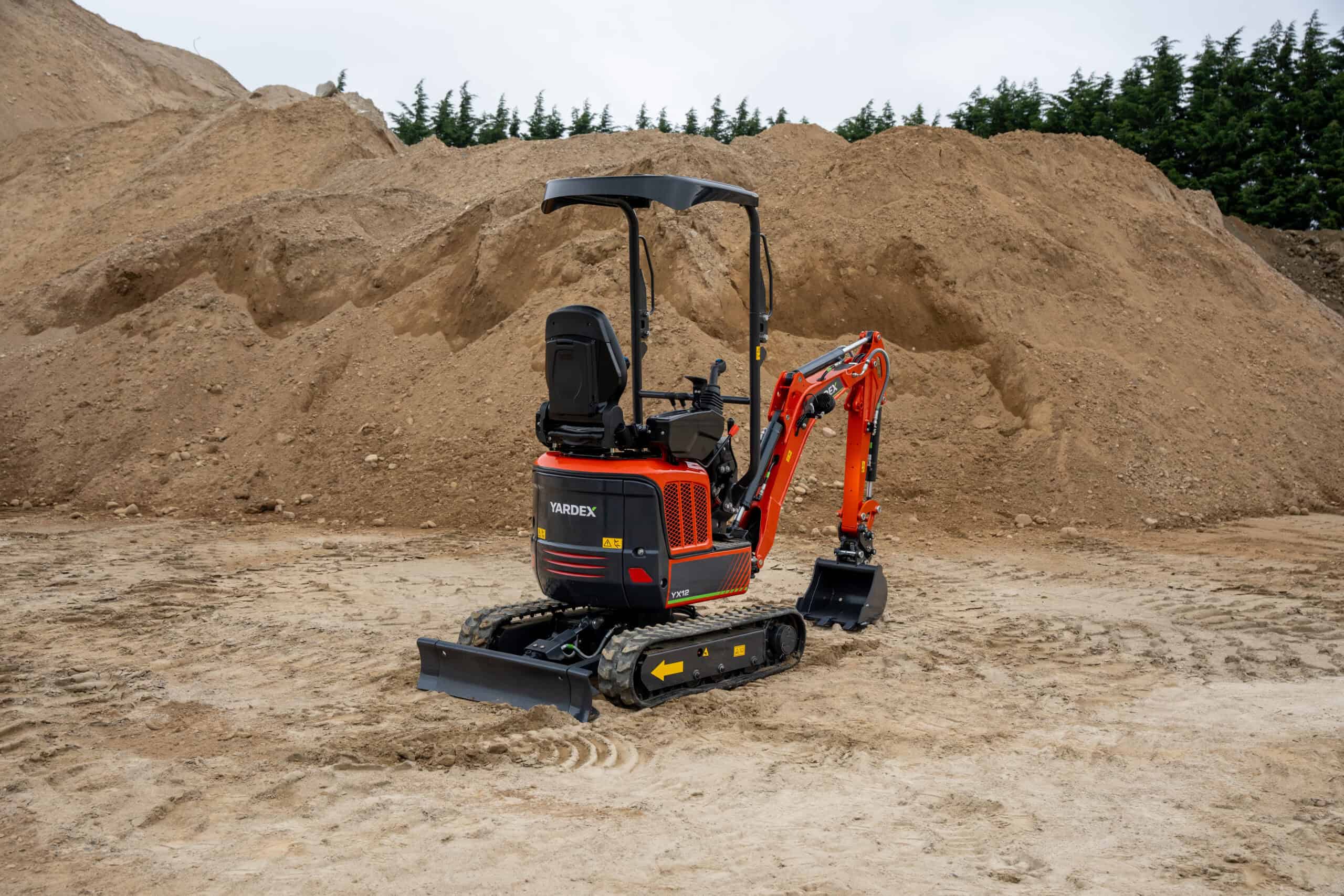

The compact Yardex 1.2T mini excavator is powered by a reliable Kubota D722 Euro 5 engine and features an expandable undercarriage, swing boom and two-speed travel for excellent versatility on site.
With protected hydraulic hoses, rubber tracks and a mechanical quick hitch, it delivers dependable performance and easy operation in tight access environments, backed by our UK & Irish parts support network.
detailed overview
Click for more information.

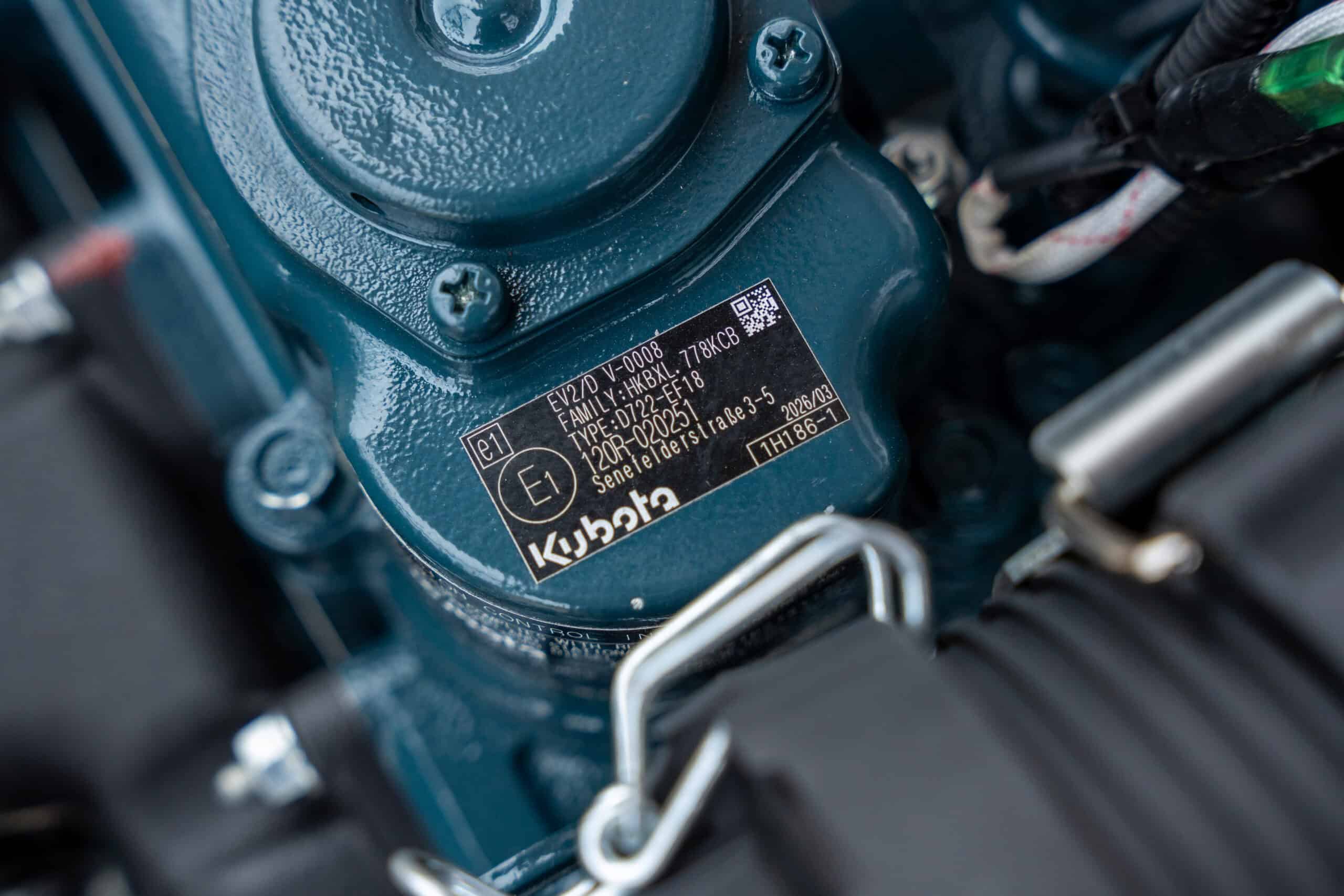

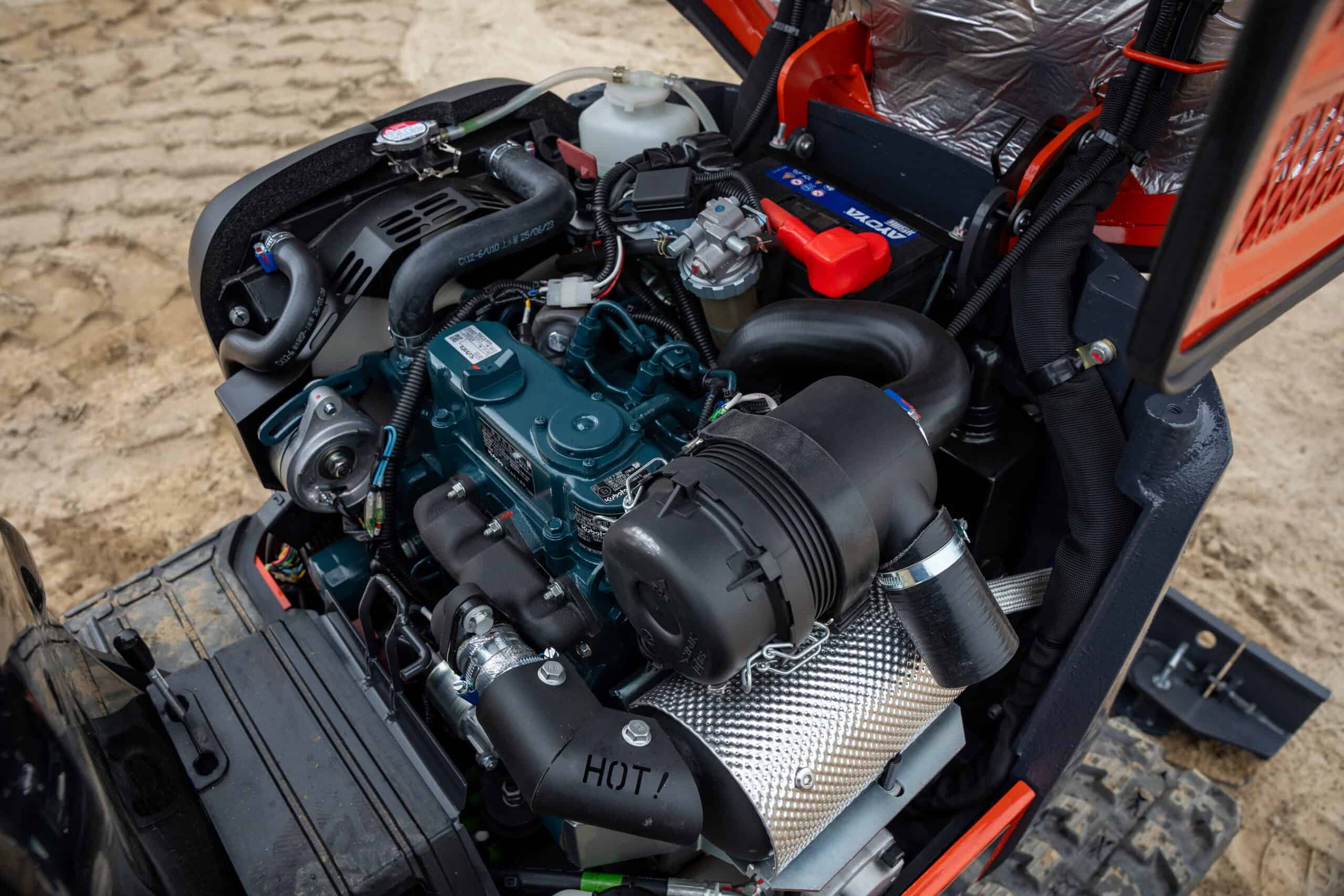

- Brand Kubota
- Model D722
- Displacement (CC) 719
- Output (kW/rpm) 10.2/2500
- Rubber track
- Rubber shoe width (mm): 180
- Track length (mm): 1310
- Traveling speed (km/h): 4
- Gradeability (deg): 58/30
- Max Digging height (mm): 3079
- Max Dumping height (mm): 2225
- Max digging depth (mm): 1805
- Max. Digging radius (mm): 3390
- Min .swing radius (mm): 1273
- Max digging force – Arm (kN): 5.4
- Max digging force – Bucket (kN): 10.4
- Protected hydraulic hoses inside the boom
- 3 pump system – tandem hydraulic gear pumps & pilot pump
- Flow rate (L/min): 21
- Hydraulic pressure (Mpa) 17.2
- Flow rate (L/min) 3.1
- Hydraulic pressure (Mpa) 3.9
- Overall length (mm) 2965
- Overall height (mm) 2230
- Overall width (mm) 750/990
- Ground clearance (mm) 140
